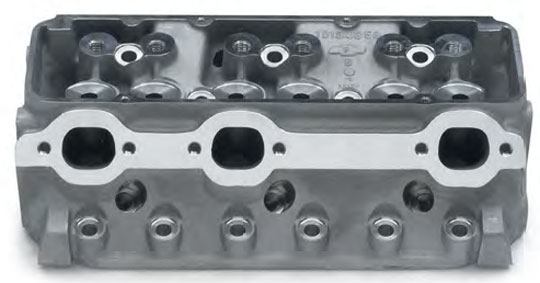

18° Aluminum Cylinder Head
$677.04
V-6 90? CYLINDER HEADS
- Low-port 18° aluminum cylinder head for maximum-effort competition engines
- Offers significant improvements over conventional head designs with 18° valve angles (vs. older 23° angles) and 43cc combustion chambers
- Spark plug holes are centrally located and valve centerlines are relocated
- Exhaust ports are high-flow
- Head face has an extra 0.080″ of material for 9.1:1 compression, and up to 2.200″ intake valves can be used
- Shallow wedge-shaped combustion chambers allow builders to achieve high compression ratios with small piston domes
- Heads do not include valve seats or guides
- Aftermarket shaft-mounted rocker arm assemblies and pushrods are required
- Piston domes and valve pockets must be matched to the revised combustion chamber design
18° Aluminum Cylinder Head
V-6 90° Cylinder Head Quick Reference Chart
Description: 18° V-6
Casting Number: 12480009
Material: Aluminum
Port Size: 215
Port Type: Raised
Valve Spring; 18°
Chamber CC’s; 43
Int Vlv: 2.150″
Exh Vlv: 1.620″
Plug Type: Angled
Heat Riser: No
Rocker Stud: Shaft
Notes: No seats/guides
V-6 90? CYLINDER HEADS
- Low-port 18° aluminum cylinder head for maximum-effort competition engines
- Offers significant improvements over conventional head designs with 18° valve angles (vs. older 23° angles) and 43cc combustion chambers
- Spark plug holes are centrally located and valve centerlines are relocated
- Exhaust ports are high-flow
- Head face has an extra 0.080″ of material for 9.1:1 compression, and up to 2.200″ intake valves can be used
- Shallow wedge-shaped combustion chambers allow builders to achieve high compression ratios with small piston domes
- Heads do not include valve seats or guides
- Aftermarket shaft-mounted rocker arm assemblies and pushrods are required
- Piston domes and valve pockets must be matched to the revised combustion chamber design
18° Aluminum Cylinder Head
V-6 90° Cylinder Head Quick Reference Chart
Description: 18° V-6
Casting Number: 12480009
Material: Aluminum
Port Size: 215
Port Type: Raised
Valve Spring; 18°
Chamber CC’s; 43
Int Vlv: 2.150″
Exh Vlv: 1.620″
Plug Type: Angled
Heat Riser: No
Rocker Stud: Shaft
Notes: No seats/guides
