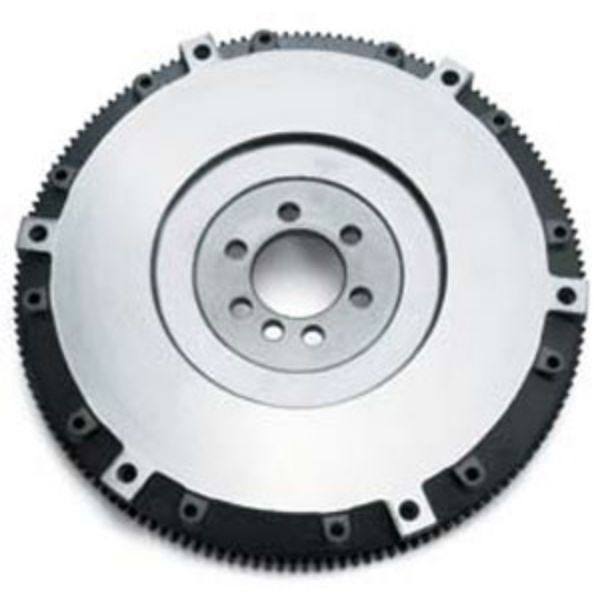

Lightweight Flywheel – 12.750″ OD
- Lightweight nodular iron for 1986 and up engines
- 12.750″ O.D.
- 3.000″ crank flange bolt pattern
- 10.000″ clutch diameter
- For 1-piece crank seal
Year of engine: 1986 and up with 1-piece crank seal
Outside diameter: 12.750“
Crank flange bolt pattern: 3.000″
Clutch diameter: 10.000″
Starter ring gear teeth: 153
Technical notes: For 1-piece crank seal. Lightweight nodular iron; weighs approximately 17 pounds
Flywheel – 12.750″ OD
14088646 Chevrolet Flywheel
For 1-Piece Crank Seal
At the opposite end of the crankshaft from the balancer are flywheels and flexplates, which connect the engine to either manual (flywheels) or automatic (flexplates) transmissions. Chevrolet Performance offers both internally and externally balanced flywheels and flexplates. It is critical that you use the correct design for your engine application.
IMPORTANT: All Chevy Small-Block and Big-Block engines with one-piece crankshaft seal require an externally balanced flywheel or flexplate.
