Camaro ZL1 HD Driveline Kit – Auto Transmission


  • Puts big power to the pavement
  • Specialty components from the production Camaro ZL1
  • Automatic transmission
  • 2010-2015 Gen 5 Camaro


Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.
SKU: 22959395 Categories: ,

Gen 5 Camaro ZL1 HD Driveline Kit

P/N 22959395

If you’re building an ultimate-performance 2010-2015 Camaro, Chevrolet Performance’s Camaro ZL1 Driveline Kit delivers the strength required to put big power to the pavement. This kit features the specialty components from the production Camaro ZL1, including a larger, stronger 9.9-inch cast iron differential housing, stronger axles and heavy-duty limited-slip differential. This patent-pending system is designed to ensure that ZL1’s tremendous power is delivered smoothly to the ground. A rear-differential cooler is incorporated and reduces temperatures in the differential by more than 100° F (fluid lines must be installed). Asymmetrical half-shafts – a 60mm hollow shaft on the right and a 33mm solid shaft on the left – offer different torsional stiffness rates, which work with the limited-slip differential to minimize the chance of wheel hop on hard launches. Also included is a stronger ZL1 prop shaft.

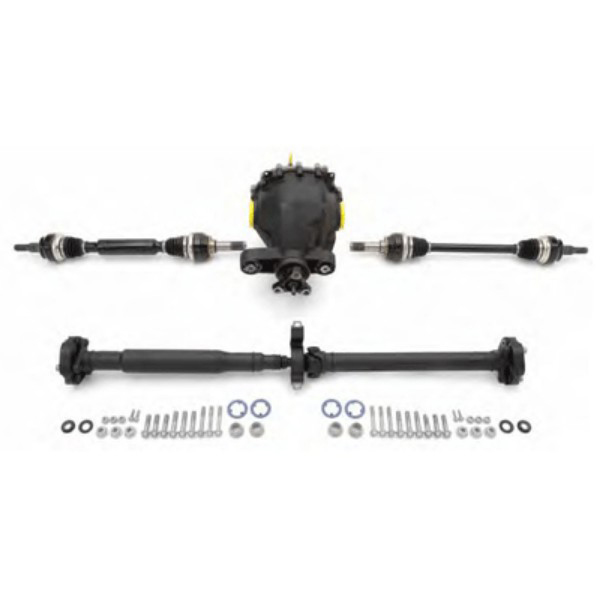

The system includes:
(1) 22960156 Propshaft
(1) 20931134 RDM
(2) 22960153 RDM Plug/caps
(1) 22953760 LH Halfshaft
(1) 22953759 RH Halfshaft
(1) 24256909 Trans Flange
(1) 24256278 Trans Flange Nut
(1) 22960155 I-Sheet
(1) 11611234 Driveshaft Nut
(2) 11611965 Driveshaft Washers
(3) 11611335 Prop to Trans Bolts
(3) 11611365 Prop to Trans Nuts
(3) 11611336 Prop to RDM Bolts
(2) 11515758 Prop to Frame Bolts
(3) 11516878 RDM to Crade Bolts
(3) 11516078 RDM to Crade Nuts
(1) 22942442 Chevrolet Performance Badge

Note: Automatic transmission


Gen 5 Camaro ZL1 HD Driveline Kit

22959395 Chevrolet Driveline Kit

Automatic Transmission
