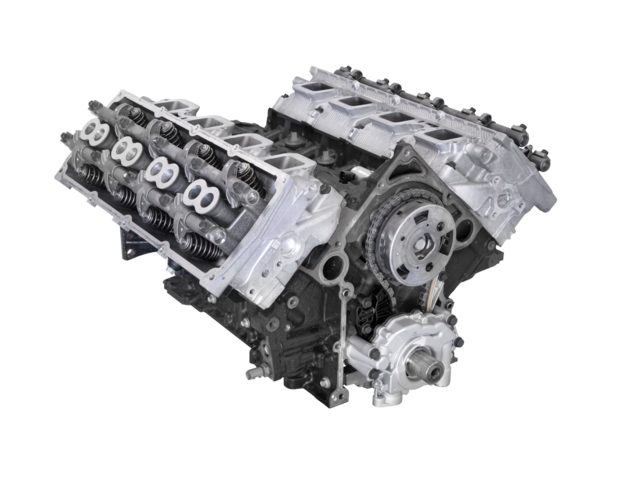

345 Crate HEMI® Long Block – Direct Connection (P5160616AA)


*** Q1 24CY Availability ***

Own the heart of legendary 345 HEMI® engine found in the 2015 and newer Dodge Challenger which is capable of 383 horsepower and 417 lb.-ft. of torque*.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: P5160616AA Category:
  • Includes engine assembly components from:
    • Cylinder head with valvetrain
    • Engine block
    • Crankshaft
    • Connecting rods
    • Piston and ring
    • camshaft
    • liftersFEATURES:
    • Engine type GEN III HEMI V8
    • Displacement 345 cu. in.
    • Bore 99.5 mm
    • Stroke 90.9 mm
    • Block (P/N: 53021214DR) cast iron with 4-bolt powder metal caps
    • Crank material nodular iron
    • Connecting rods powdered metal
    • Piston material hypereutectic aluminum
    • Camshaft nodular iron
    • 319 aluminum, HEMIspherical combustion chamber cylinder heads
    • Intake valve size 52.1 mm
    • Exhaust valve size 39.4 mm
    • Compression ratio 10.5:1
    • Peak RPM 5600
    • Premium Fuel Recommended

    *HP/TQ numbers are reference purposes only as this is not sold as a complete drop in swap

  • Warranty:NO PARTS WARRANTY – “AS IS”
