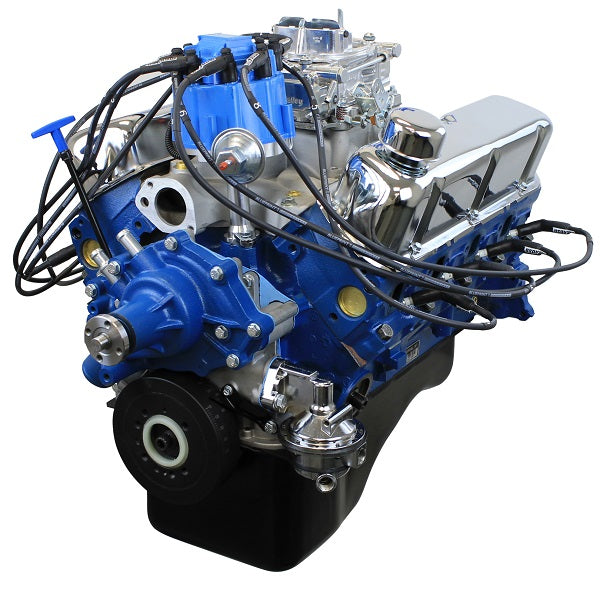

BluePrint Engines 302CI Crate Engine | Small Block Ford Style | Dressed Longblock with Carburetor | Iron Heads | Roller Cam


  • HP & Torque: 300 HP / 330 FT LBS
  • Compression Ratio: 9.0:1
  • Cast Iron Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: BPEBP3024CTC Category:

This BluePrint Engines 302 Crate Engine is a great option for your application with iron heads and a roller cam.


*Not for use in pollution controlled vehicles

*Engine timing cover is designed for standard rotation water pump only

Weight 500 lbs

  • Hand picked seasoned block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 2-Bolt Main
  • 4.000″ Bored .060″ Over
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Ford, machined and balanced by BluePrint Engines
  • 3.000″ Stroke
  • OEM type 5.090″ connecting rods
  • Hypereutectic pistons
  • 50oz External balance
  • Cast Iron
  • Hardened retainers and springs
  • 1.94 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • Cam Type: Roller
  • .543 Intake .554 Exhaust
  • 218 Intake / 226 Exhaust duration @ .050
  • 112 degree lobe separation
  • 34 Degrees Total at 3500 RPM
  • Carb Intake
  • Dual plane
  • Harmonic balancer
  • Chrome valve covers
  • Chrome timing cover
  • Distributor
  • Standard Rotation Water pump
  • Fuel pump
  • Spark plug wires
  • Spark plugs
  • Painted oil pan
  • Dyno test results shipped with engine

30 Month/ 50,000 Mile
