ZZ454/440 (469 hp) Connect & Cruise Powertrain System with T56 Manual Transmission


  • ZZ454 (454 cu. in.) 469 HP Engine
  • High-Flow Oval-Port Aluminum Heads
  • Includes Water Pump, Balancer & Intake
  • T56 Super Magnum Six-Speed Manual Trans.
REBATE AVAILABLE: $500/$750/$1,000 Prepaid VISA Gift Card From Chevrolet Performance. See 'Rebate' tab below for details.
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: CPSZZ4544406LMAN Categories: , Tag:

ZZ454/440 Connect & Cruise with T56 Transmission

Engine Specs:

  • ZZ454 (454 cu. in.)
  • 469 hp @ 5,500 rpm
  • 519 lb.-ft. @ 3,700 rpm
  • 9.6:1 compression ratio
  • 110cc aluminum oval port heads (2.190 intake / 1.880 exhaust valves)
  • 1.7 ratio stamped steel rocker arms
  • .510 intake / .540 exhaust camshaft lift

Transmission Specs:

  • T56 Super Magnum six-speed manual
  • 26-spline input shaft, 31-spline output shaft
  • Slip-yoke design, 40-tooth reluctor ring for use with Chevrolet Performance controllers
  • New synchronizers featuring fine tooth angles
  • Bolstered one-piece countershaft to resist distortion
  • Re-designed shift forks
  • Gear ratios: 1st-2.66, 2nd-1.78, 3rd-1.30, 4th-1.00, 5th-0.80, 6th-0.63)
  • 33.6 inches long (approx)

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine and automatic or manual transmission and, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence!

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, controllers and installation kits (where applicable) are ordered and delivered separately.

Additionally, all engines require a front-end accessory drive system. The instructions included with each kit lists recommendations and Chevrolet Performance offers several configurations to suit different applications that also allows the installer to easily delete air conditioning.


ZZ454/440 Connect & Cruise with T56 Transmission

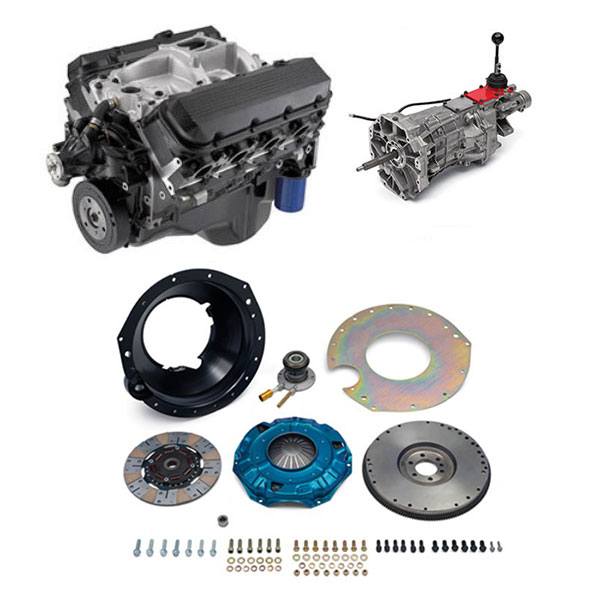

CPSZZ4544406LMAN System Components:

  • 19331574 Engine
  • 19352208 Transmission
  • 19329901 Transmission Installation Kit

The Classic 454 Big-Block topped with Aluminum Heads and Intake, Mated to a Stout 6-Speed Gearbox!

The Chevrolet Performance engineers started with the tough 454 HO and added a set of better flowing, lighter weight, oval-port aluminum cylinder heads to pick up 15 additional horsepower. Don’t worry though, that meaty torque is still there ? all 500 foot-pounds of it! It is all housed in the latest-generation block casting with four-bolt main caps that contain an all-forged rotating assembly for superior strength and durability. The ZZ454 is an affordable high-performance Big-Block Chevy ready to take your hot rod project to the next level.

It’s all backed by the T56 Super Magnum six-speed manual transmission for thrill of selecting your own gears and a double overdrive to make highway cruising a pleasure. These transmissions are rated to 700 lb.-ft. of torque and are brand new from the ground up. They use an extensively modified transmission case to prevent leaks under high-stress conditions and increase overall power-handling capabilities. The exterior case is similar in style to the T56 used in the fourth-generation F-body with stronger, high-capacity gear sets, input shaft and output shaft used in the Tremec TR6060. Kit includes shifter handle and Chevrolet Performance-logo ball-type shift knob to complete your install.

Dyno Chart

ZZ454/440 Connect & Cruise with T56 Transmission

Click here to download installation information.

ZZ454/440 Connect & Cruise with T56 Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
  2. Complete all information requested on this form and mail it by January 31st, 2024, OR
  3. Submit your rebate online at before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.
