ZZ6 Base Connect & Cruise Crate Powertrain System with 4L65-E Automatic Transmission

$13,070.05

  • 405hp @ 5,600 rpm / 406 lb.-ft. @ 4,600 rpm
  • Forged Steel Crank in a Four-bolt Main Block
  • Lightweight Aluminum Heads and Intake
  • 4L65-E Four-Speed Automatic Transmission
REBATE AVAILABLE: $500/$750/$1,000 Prepaid VISA Gift Card From Chevrolet Performance. See 'Rebate' tab below for details.
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: CPSZZ64L65E Categories: , Tag:

ZZ6 Base Connect & Cruise with 4L65-E Transmission

Engine Specs:

  • ZZ6 Base (350 cu. in.)
  • 405 hp @ 5,600 rpm
  • 406 lb.-ft. @ 4,600 rpm
  • 9.72:1 compression ratio
  • 62 cc aluminum Fast Burn heads (2.000 intake / 1.550 exhaust valves)
  • 1.5 ratio roller rocker arms
  • .474 intake / .510 exhaust camshaft lift

Transmission Specs:

  • 4L65-E four-speed automatic
  • Five-pinion gearsets
  • 3.06:1 first gear ratio, 0.70 overdrive ratio
  • 30.75 inches long (approx)

Installation Notes:

  • Designed for pre-1976 street vehicles or any off-highway vehicle
  • Not intended for marine applications

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine and automatic or manual transmission and, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers for fuel-injected engines are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, controllers and installation kits (where applicable) are ordered and delivered separately.

Brand

ZZ6 Base Connect & Cruise with 4L65-E Transmission

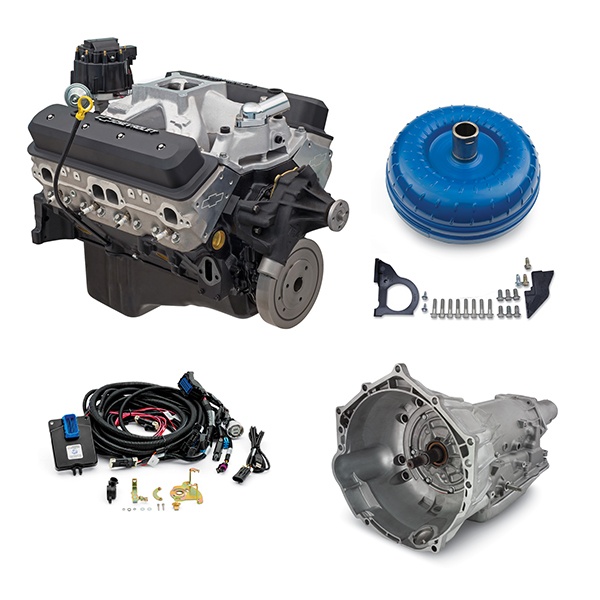

CPSZZ64L65E System Components:

  • 19417576 Engine
  • 19368611 Transmission
  • 19299801 Torque Converter
  • 19332775 Transmission Control System
  • 19332781 Transmission Installation Kit

The ZZ6 delivers more power than any 350 Small-Block Chevy ever installed in a GM production vehicle. Rated at 405 hp and 406 lb.-ft. of torque, it features lightweight aluminum cylinder heads that enable optimal airflow at high rpm. The cylinder head casting is based on the proven Fast Burn design, with large intake runners and 2.00/1.55-inch valves. Beehive-style valve springs deliver greater high-rpm performance and durability. The ZZ6 also features an aggressive hydraulic roller camshaft.

This Base crate engine includes the intake manifold, distributor, water pump, damper and flexplate ? and the unique racing-inspired valve covers that distinguish this motor as the latest in the ZZ legacy!

It’s all backed by the 4L65-E four-speed overdrive automatic, which enables great highway cruising performance and fuel economy, while retaining good off-the-line performance with the steep first gear ratio. It is tough as nails too, with the durability of hardened internal parts and five-pinion gearsets.

Dyno Chart

ZZ6 Base Connect & Cruise with 4L65-E Transmission

Click here to download installation information.

ZZ6 Base Connect & Cruise with 4L65-E Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
  2. Complete all information requested on this form and mail it by January 31st, 2024, OR
  3. Submit your rebate online at www.gmpartsrebates.com before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.
