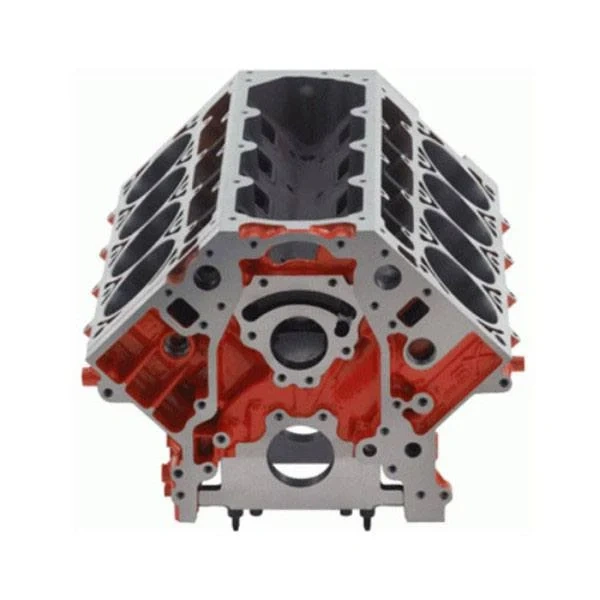

LSX Bowtie Block, Tall Deck
P/N 19417354
- 3.880″ finished siamese cylinder bores
- 9.720″ semi-finished tall deck height (ready to be decked)
- 4.500″ maximum stroke (small base circle camshafts required)
- Capable of 364- to 500-cubic-inch displacements or more!
- Orange powder-coated finish
- Accepts Gen IV LS and LSX Series heads, cranks, cams, etc.
- Approximate finished weight is 250 pounds
LSX blocks include the following:
- 19244460 Cam Thrust Plate
- 19166179 Rear Cover
- 19166182 Tappet Guides
Other service parts for your LSX:
- 19166178 Cam Thrust Plate, O-Ring. Gasket
- 19166180 Rear Cover, O-Ring
- 19166181 Rear Cover, O-Ring Seal
- 19211434 Main Cap Dowel (10-piece kit)
LSX Bowtie Block, Tall Deck
19417354 Chevrolet Cylinder Block
Delivering the seemingly impossible combination of professional racing-level strength and entry-level affordability, the Chevrolet Performance LSX Bowtie Block is the next revolution in high performance engine-building. This durable iron-block casting is based primarily on the GM production LS7 block, but designed with more material in key areas ? including a thicker deck and bores ? to support displacements of 454 cubic inches or more, and unique six-bolts-per-cylinder-head-clamping capability that enables forced-induction and nitrous combinations of greater than 2,000 horsepower.
Because the LSX Bowtie block is based on production LS blocks, all of the LS-Series Gen IV cylinder heads, crankshafts, oil pans, camshafts, and accessories bolt right up to it. There is also a tall-deck version for building even larger engines. Chevy Performance delivers the LSX Bowtie Block semi-finished, allowing you to finish it to your needs. Whether you’re building a “tame” 500-horse street engine for your hot rod or a 1,700 horsepower turbo engine for an Outlaw drag racer, the LSX Bowtie Block is the foundation for an unbeatable combination ? at an unbeatable price!
Specs and features include:
- CNC-machined cast iron block
- True priority main oiling
- 6-head bolts per cylinder
- Standard 4.400″ bore spacing
- Extra-thick siamese cylinder bores
- Semi-finished, machined thicker decks
- LS7-style, 6-bolt dowel-located billet main bearing caps
- Wet-sump and dry-sump oiling capability
- Production-style deep-skirt head bolt holes
- Production bolt hole and thread sizes
- Maintains production exterior accessory mounting provisions
- Front motor plate mounting holes added
- Additional material cast around cam bearings for greater strength
- 8mm exterior/interior fifth- and sixth-head bolt holes
- Standard 0.842″ lifter bores
- Accommodates all LS oil pumps and oil pans
- External oil pump feed (rear of block)
- Main web bay-to-bay breathing holes to support greater horsepower
- Includes unique cam retainer, rear cover and lifter retainers
For the advanced LSX competition engine builder, you will fully enjoy the following features of the new LSX Bowtie Block:
- Front oil feed holes can be plugged/restricted for mechanical flat tappet or mechanical roller lifter applications
- Can be machined safely to 9.200″ deck height
- Maximum 4.200″ bore at .200″ minimum wall thickness (naturally aspirated applications)
- Head bolt holes can be machined for 1/2″ studs
- Cam bores can be machined to accept 60mm roller bearings
- Can be machined for larger diameter lifters and/or 1.060″ bronze bushings
- Front oil feed lines can be plugged and external oil pump and/or aftermarket dry sump systems can be used via oil pump feed at rear of block ? may be required with certain large stroke/aluminum rod combinations
- Belt cam drive systems can be accommodated ? some machining will be required
- Front motor plate can be used for racing chassis applications (sprint car, drag racing, truck pulling, etc.)
- Threaded water plugs can be used for external heaters or coolers
- Extra stock for main bearing align-honed
- 400 mPa Tensile strength iron
GM Parts and Components carry a 12-month parts-only limited warranty unless otherwise noted.
