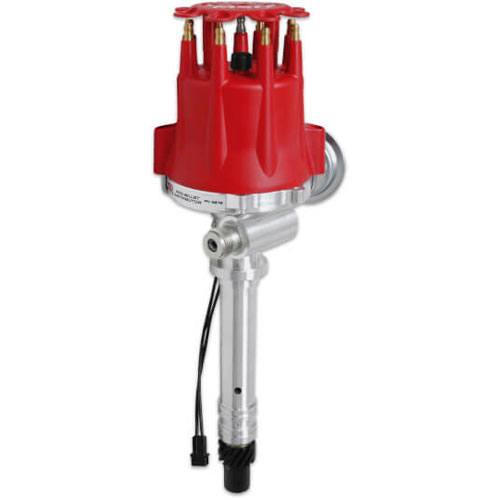

MSD 8572 Pro-Billet Tach Drive Distributor, Corvette V-8


  • For 1963-1974 Corvette V-8
  • Same as PN 8571
  • Includes vacuum advance
  • CARB E.O. approved
SKU: MSD8572 Category:

Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages.

Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500″ steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up.

An adjustable mechanical advance assembly allows you to get the most performance out of your Vette’s engine by custom tailoring a timing curve to fit your application.

The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.


  • Same features as the PN 8571 with the addition of a vacuum advance
  • CARB E.O. Approved
Weight 5 lbs
Dimensions 18.2 × 6.9 × 7.1 in





Manufacturer Part Number


MSD Pro-Billet Tach Drive Distributor with Vacuum Advance

1963-1974 Corvette V8

Now you can now replace your worn out Magna-Pulse distributor!
