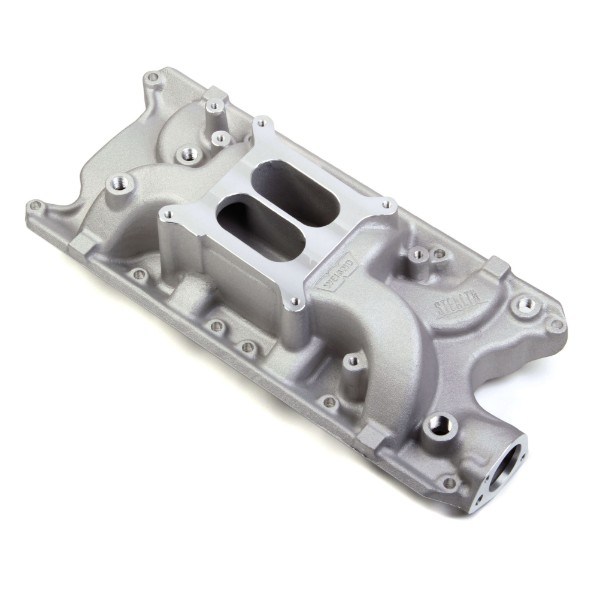

Weiand 8020WND Stealth Series Intake Manifold Small Block Ford 289 302


  • Port Size: 1.83″ height 1.02″ width
  • Height: Front 4.35″, Rear 5.59″
  • High Rise Dual Plane Design
  • Square Carburetor Mounting Flange
SKU: WEI8020WND Category:

Available for both 351W (8023) and 289/302 (8020) small block Fords, are Weiand’s advanced hi-rise “Stealth” manifolds. These are the most advanced dual plane, 180° intakes on the market, combining excellent bottom-end performance with an exceptionally broad power curve that extends to 6800 RPM. They are ideally suited to a number of applications, including high performance street and marine use, E.T. bracket racing, and even RVs, tow vehicles, etc. “Stealth” manifolds are to be used in conjunction with more aggressive camshaft profiles, high performance ignition, and exhaust systems, etc. They have a square bore carburetor pad to accommodate 600-850 cfm aftermarket carburetors. The “Stealth” manifolds have been designed to accept most stock hardware, such as coolant and vacuum lines, coils, and brackets. Little alterations, if any, will be required.

Weight 20.7 lbs
Dimensions 23 × 6.88 × 11.5 in




Off-Road Racing Use Only

Manufacturer Part Number


Ford S/B Stealth Series
