WILWOOD 260-8555-BK Alu Master Cylinder Hi Volume Tandem Dual Outlet 1″ Bore Blk
Original price was: $365.82.$304.85Current price is: $304.85.

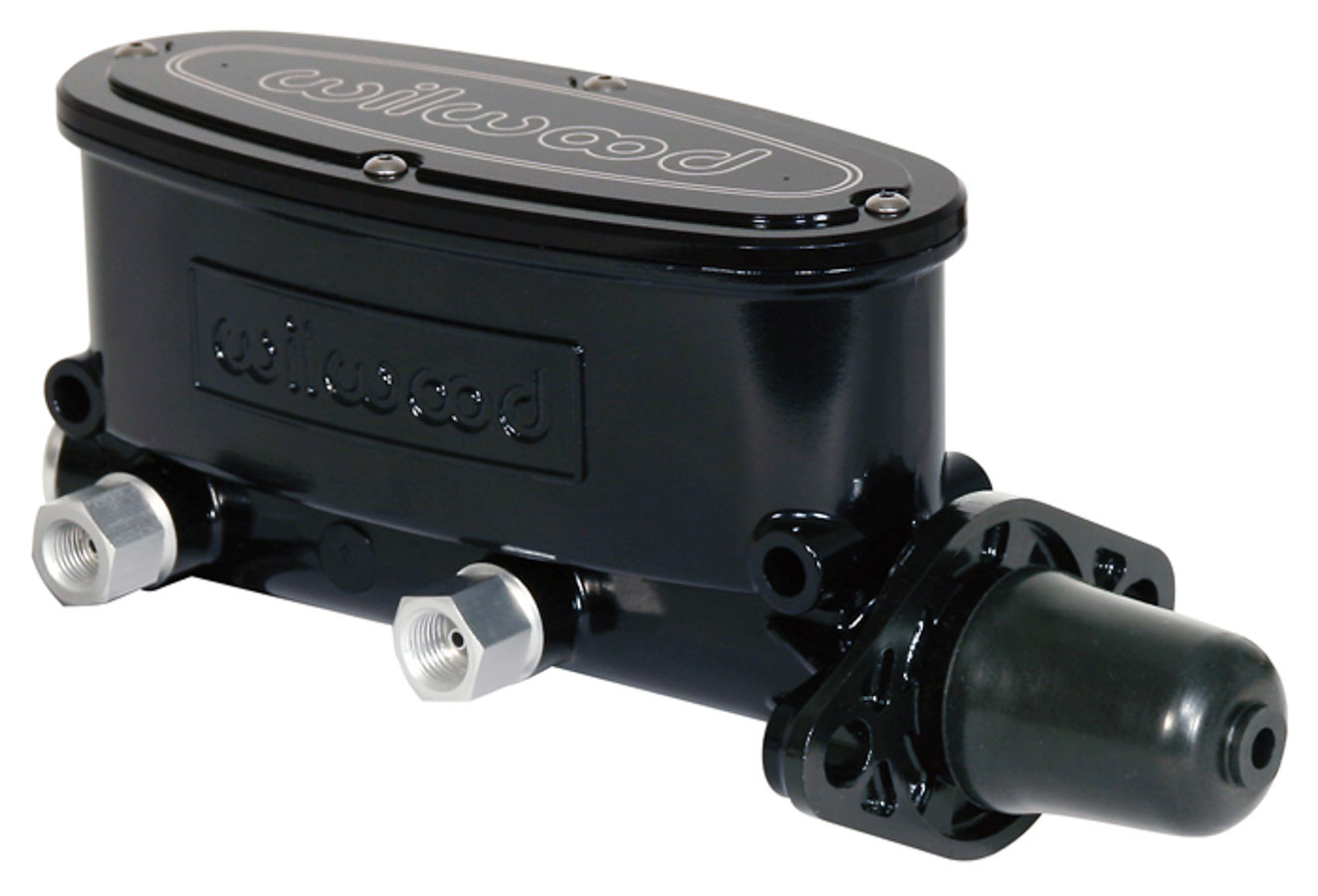

Wilwood Tandem Aluminum Master Cylinder
Wilwood Tandem Aluminum Master Cylinder, black in color with a 1.00in bore size. The 1? bore can be used in manual and power assisted applications and does not come with a pushrod. They?re designed for mount flanges from 3.22? to 3.40?, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10? with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders.
| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 1.00″ |
| Area (in?) | 0.780 |
| Stroke | 1.10 |
| Volume (cu in) | |
| Master Cylinder Description | |
| Type | Tandem Outlet |
| Outlets | 2 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir | |
| Res Type | Integral |
| Res Size (oz) | 8.0 / 4.8 |
| Res Size(cu in) | 14.4 / 8.7 |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 8.76″ |
| Flange to End Length (in) | 8.15″ |
| Inlet Size (in) | |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 1/2-20 |
| Outlet Fit 1 (in) | 3/8-24 IF or 1/2-20 IF |
| Outlet Size 2 (in) | 1/2-20 |
| Outlet Fit 2 (in) | 3/8-24 IF or 9/16-18 IF |
| Weight | 3.05 lbs |
|---|---|
| Dimensions | 10.2 × 5.3 × 5.1 in |
| Brand | |
| Manufacturer Part Number | 260-8555-BK |
