Wilwood Brake Proportioning Valves 260-13190
Original price was: $180.00.$150.00Current price is: $150.00.
Wilwood Brake Proportioning Valves
Brake Proportioning Valve, Knob Adjustable,100 – 1,000 psi, Aluminum, Black, 3/8-24 in. Inverted Flare Female Threads, Kit
See More Specifications | Check the Fit
Wilwood 260-13190 Brake Proportioning Valve Mounting Bracket Kit Adjustable Blk
Wilwood finally has an elegant answer to the question, ?Where do I mount my Combination Proportioning Valve?? with their new Mounting Bracket Kit. ? Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders in manual or boosted system applications.

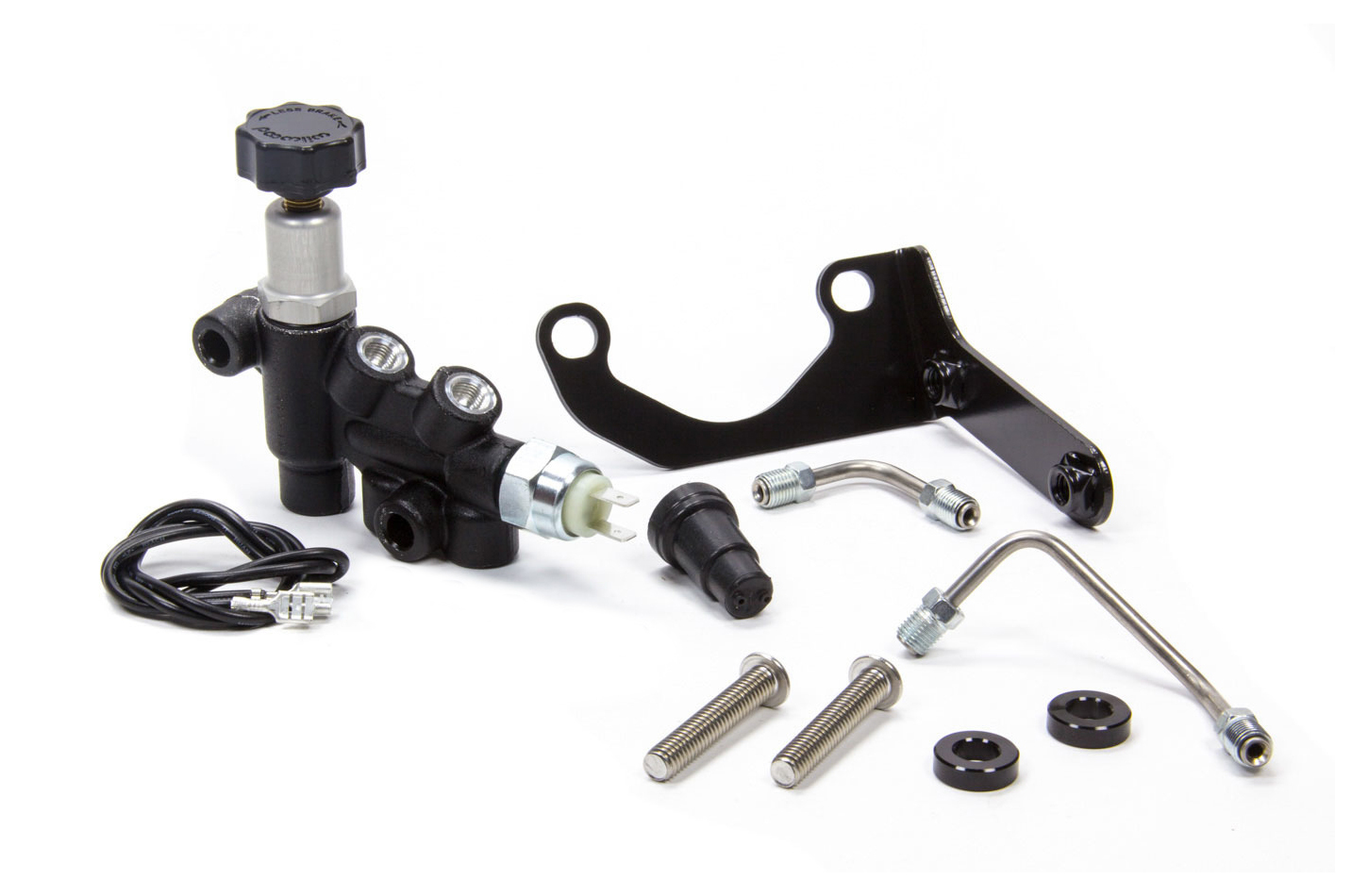

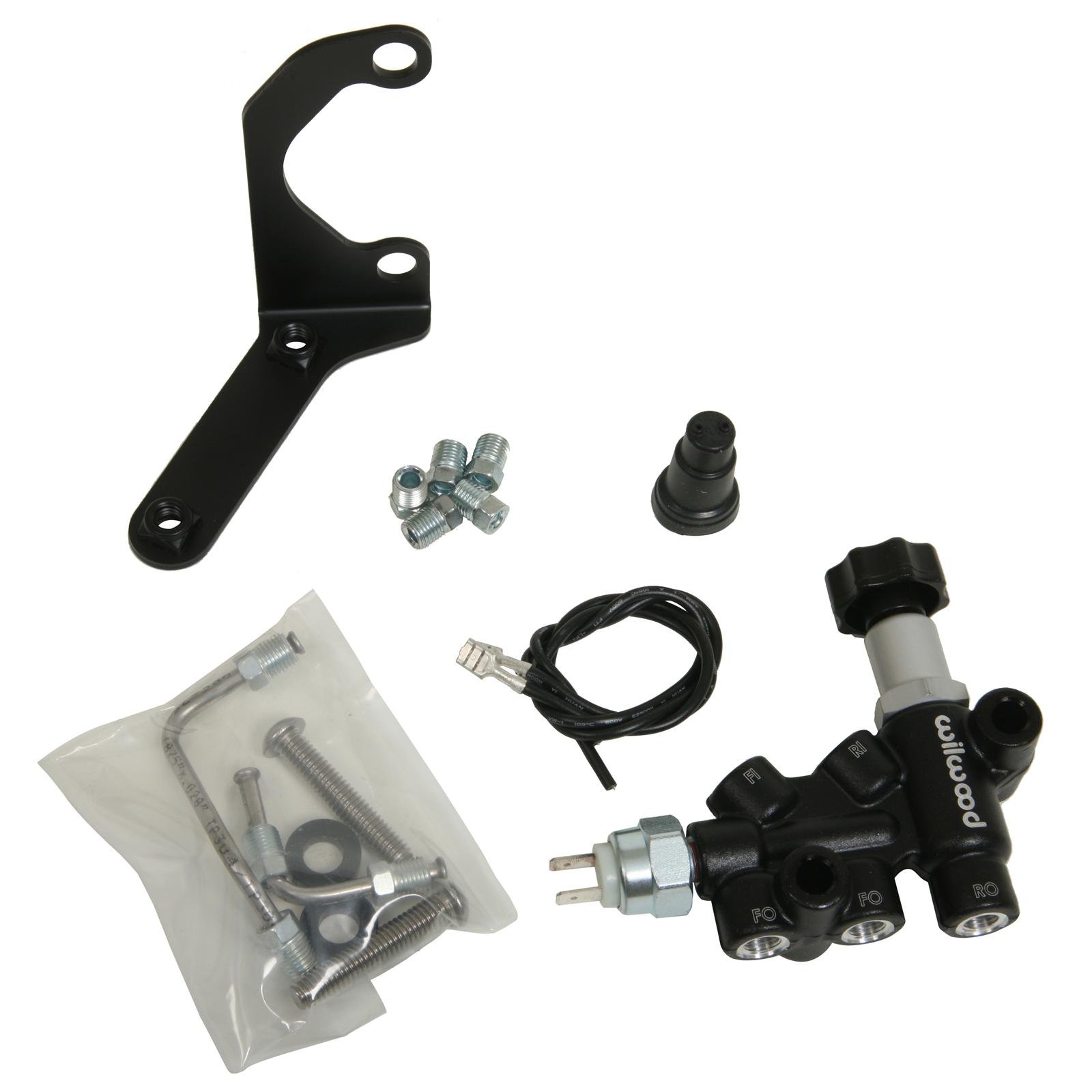

- Includes stainless fluid tubes, combination proportioning valve, mounting bracket, and hardware
- Adjustable from 100-1000psi
- Inverted Flare female threads, 3/8-24in
- Black anodized
Fits: Wilwood P/N?s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375
| Brand | |
|---|---|
| Manufacturer Part Number | 260-13190 |
Overview
Brand:
Wilwood Disc Brakes
Manufacturer’s Part Number:
260-13190
Part Type:
Brake Proportioning Valves and Distribution Blocks
Product Line:
Wilwood Brake Proportioning Valves
Karl Kustoms Part Number:
WIL260-13190
UPC:
889545067163
Adjustment Style:
Knob
Inlet Quantity:
2
Inlet Attachment:
Female threads
Brake Line Inlet Size:
3/8 in.-24 inverted flare
Outlet Quantity:
3
Outlet Attachment:
Female threads
Brake Line Outlet Size:
3/8 in.-24 inverted flare
Connector For Warning Light:
Yes
Minimum Pressure (psi):
100 psi
Maximum Pressure (psi):
1,000 psi
Pressure Reduction (%):
57 percent
Proportioning Valve Finish:
Black anodized
Proportioning Valve Material:
Aluminum
Remanufactured:
No
Quantity:
Sold as a kit.
Notes:
Kit includes mounting bracket for left hand side, two pre-formed brake lines from the master cylinder to the proportioning valve and mounting hardware. Designed to be used with master cylinders 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375.
