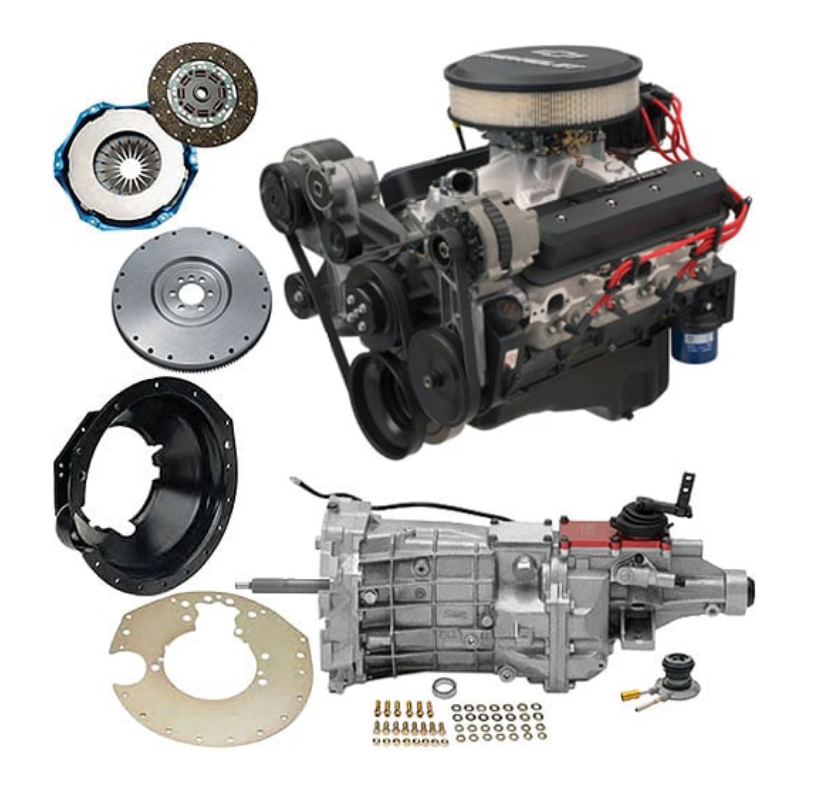

ZZ6 Turn-Key Connect & Cruise Crate Powertrain System with T56 Manual Transmission

$17,864.02

  • 405 hp @ 5,600 rpm / 406 lb.-ft. @ 4,600 rpm
  • Turn-Key engine package!
  • Aggressive Hydraulic Roller Camshaft
  • T56 Manual Transmission

Have your engine dyno tested by one of our professional engine builders to ensure everything is properly broken in. We can dyno your engine with your components to make sure everything is working harmoniously before shipping you the whole assembly drained and ready to install.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: CPSZZ6TKT56 Categories: , Tag:

ZZ6 Turn-Key Connect & Cruise with T56 Transmission

Engine Specs:

  • ZZ6 Turn-Key (350 cu. in.)
  • 405 hp @ 5,600 rpm
  • 406 lb.-ft. @ 4,600 rpm
  • 9.72:1 compression ratio
  • 62 cc aluminum Fast Burn heads (2.000 intake / 1.550 exhaust valves)
  • 1.5 ratio roller rocker arms
  • .474 intake / .510 exhaust camshaft lift

Transmission Specs:

  • T56 Manual Transmission
  • 700 lb.-ft. Maximum Torque Capacity
  • 26-Spline Input Shaft
  • 31-Spline Output Shaft
  • Slip-Yoke Design
  • Two-Position Shifter Place Included, with the Third Position Built Into the Transmission
  • 4th Gen F-Body Bellhousing and Hydraulic Throwout Bearing
  • LS7-Style Flywheel and Clutch

Installation Notes:

  • Designed for pre-1976 street vehicles or any off-highway vehicle
  • Requires fuel line from fuel pump to carburetor
  • Not intended for marine applications

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine and automatic or manual transmission and, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers for fuel-injected engines are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, controllers and installation kits (where applicable) are ordered and delivered separately.

Brand

ZZ6 Turn-Key Connect & Cruise with T56 Transmission

CPSZZ6TK4L65E System Components:

  • 19433042 Engine
  • 19352208 Transmission
  • 19329900 Transmission Kit

The ZZ6 delivers more power than any 350 Small-Block Chevy ever installed in a GM production vehicle. Rated at 405 hp and 406 lb.-ft. of torque, it features lightweight aluminum cylinder heads that enable optimal airflow at high rpm. The cylinder head casting is based on the proven Fast Burn design, with large intake runners and 2.00/1.55-inch valves. Beehive-style valve springs deliver greater high-rpm performance and durability. The ZZ6 also features an aggressive hydraulic roller camshaft.

This Turn-Key engine package includes the intake, distributor and balancer installed. The carburetor, starter, fuel pump, air conditioning pump, alternator, serpentine belt front-end accessory drive kit and more are all included.

Dyno Chart

ZZ6 Turn-Key Connect & Cruise with T56 Transmission

Click here to download installation information.

ZZ6 Turn-Key Connect & Cruise with T56 Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
  2. Complete all information requested on this form and mail it by January 31st, 2024, OR
  3. Submit your rebate online at www.gmpartsrebates.com before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.

Prop65WARNING: These auto parts can expose you to chemicals including phthalates and lead. Installing or using these parts can expose you to other parts containing these chemicals and to engine exhaust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
