Intake Manifold – Vortec Head Design for TBI
$633.73
- Aluminum manifold designed for throttle body fuel injection
- For Vortec cylinder heads
- Accepts EGR
- Primarily intended for pre-1996 engine blocks
- WILL TAKE 5-6DAYS TO SHIP

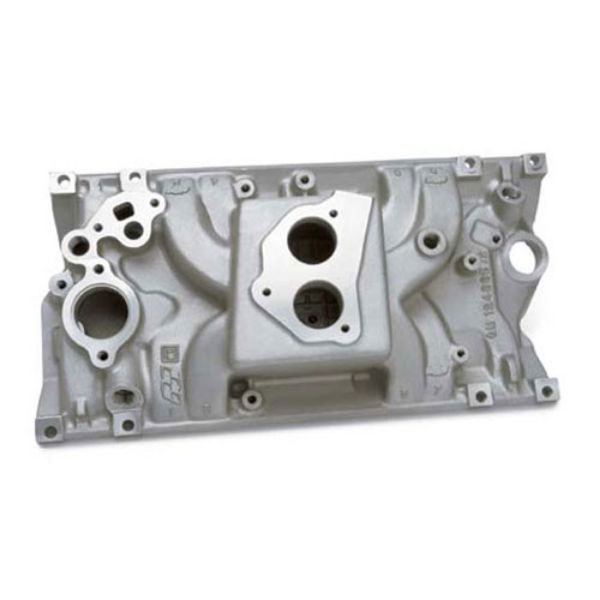

Intake Manifold, Vortec Head Design for TBI
P/N 12496821
– Designed for throttle-body fuel injection
– Aluminum intake will work with all Vortec cylinder heads, including P/N 12558060, P/N 19300956, P/N 19300955, P/N 19331470, or P/N 19331472
– Also accepts EGR
Additional Required Components:
- Gaskets (1) 89017465
- Bolts (8) 12550027
Engine Application: Vortec Head for TBI
Note: The exhaust manifold from 1996-and-newer pickup trucks with RPO L31 350 engine, P/N 12557828, is drilled and tapped to accept an EGR tube. EGR pipe P/N 10220275 can be used with EGR Valve P/N 19210662 and gasket P/N 12337972. This manifold is primarily intended for use with Vortec heads on pre-1996 engine blocks. Blocks manufactured in 1995 or earlier have thermostat bypass passage from the block directly to the water pump. If manifold is used on 1996 and later engines (which do not have the bypass in the block), you must run a coolant bypass line from the manifold to the 5/8″ hose nipple on the water pump (passenger’s side). Suggested routing is from the 3/8 NPSF boss on manifold to the water pump.
Intake Manifold, Vortec Head Design
12496821 Chevrolet Intake Manifold
For Throttle-Body Fuel Injection
Intake manifolds distribute the air/fuel mixture to the appropriate cylinders. Intake manifold design is geared toward the end usage, whether that is a street performance engine or an all-out competition application. The wide range of Chevrolet Performance intake manifolds means there is an ideal manifold for your every need. There are cast-iron and aluminum intake manifolds for carbureted and fuel injected applications. Chevrolet Performance intake manifolds were designed specifically for GM engines, so you know they will deliver O.E. performance.
