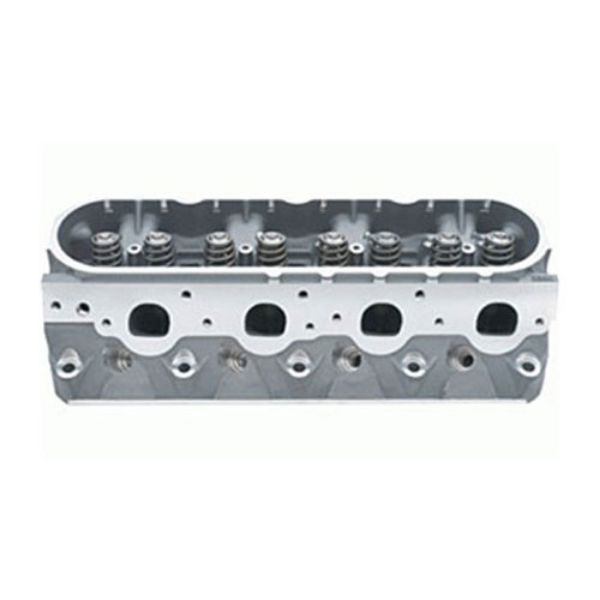

L92 Cylinder Head Assembly


  • 319-T5 aluminum alloy
  • 2.165″ solid stem intake, and 1.590″ solid stem exhaust valves
  • .510″ max valve lift
  • For any LS family engine with 4.000″ bore or larger


SKU: 12629062 Categories: ,

L92 Cylinder Head Assembly

P/N 12629062

– Aluminum performance head
– Fits any LS family engine with 4.000″ bore or larger
2.165″ solid stem intake, and 1.590″ solid stem exhaust valves
.510″ max valve lift
– As-cast L92 style intake ports
– D-shaped exhaust ports
– As-cast combustion chambers

L92 Head Flow Data (4.000″ Bore):

Lift 0.200″ 0.300″ 0.400″ 0.500″ 0.600″
Intake 151 208 256 294 316
Exhaust 111 152 174 183 189

Replaces old P/N 12629064.


L92 Cylinder Head Assembly

12629062 Chevrolet Cylinder Head

LS Family Engines with 4.000″ Bore or Larger

Great cylinder-head airflow has been a key enabler of the LS-Series‘ exceptional performance. Chevrolet Performance delivers those power-building attributes to you with a range of production-style aluminum heads ヨ from the LS6 heads for smaller-displacement engines to LS7 style heads for 427-inch-and-larger combinations, our aluminum heads benefit from GM‘s extensive research and development program, ensuring maximum airflow without compromises. In fact, many professional builders use our heads as straight bolt-ons, with no further machining. Many of our assembled heads use premium machining and materials, including CNC finishing and porting, along with lightweight, hollow-stem valves, sodium-filled exhaust valves and ヨ on some heads ヨ lightweight titanium intake valves.

Aluminum LS Family Head Technical Notes:
ユ Manufactured from 319-T5 aluminum alloy
ユ High-efficiency combustion chambers
ユ Symmetrical intake and exhaust ports
ユ Angled spark plugs (14mm; 5/8″ hex; 3/4″ reach; taper-seat plugs)
ユ 15ᄚ valve angle (except C5R and LS7)
ユ Bolt-down-type rocker arms (except LSX-DR, LSX-CT)
ユ Center-bolt valve cover hold-downs
Fits Gen III and Gen IV Small-Blocks only

NOTE: Chevrolet Performance heads will not fit 4.8L and 5.3L engines, due to their smaller bore sizes.

Replaces old P/N 12629064.
