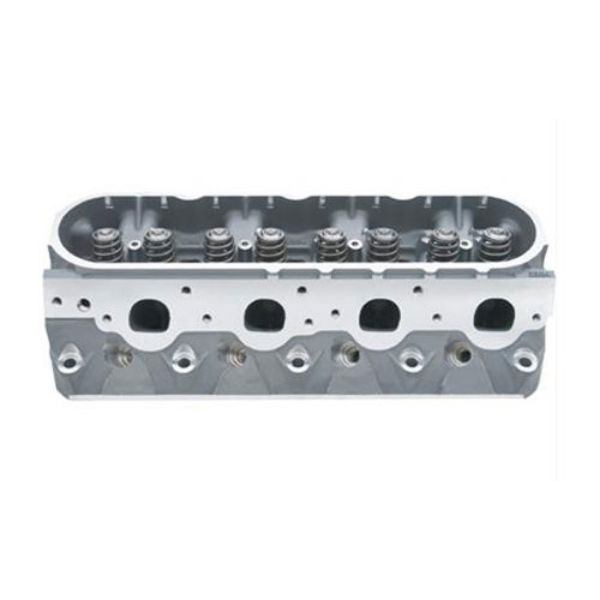

L92 Cylinder Head Assembly
$809.70
Great cylinder-head airflow has been a key enabler of the LS-Series‘ exceptional performance. Chevrolet Performance delivers those power-building attributes to you with a range of production-style aluminum heads – from the LS6 heads for smaller-displacement engines to LS7 style heads for 427-inch-and-larger combinations, our aluminum heads benefit from GM‘s extensive research and development program, ensuring maximum airflow without compromises. In fact, many professional builders use our heads as straight bolt-ons, with no further machining. Many of our assembled heads use premium machining and materials, including CNC finishing and porting, along with lightweight, hollow-stem valves, sodium-filled exhaust valves and – on some heads – lightweight titanium intake valves.
Note: Chevrolet Performance heads will not fit 4.8L and 5.3L engines, due to their smaller bore sizes.
Aluminum LS Family Head Technical Notes:
- Manufactured from 319-T5 aluminum alloy
- High-efficiency combustion chambers
- Symmetrical intake and exhaust ports
- Angled spark plugs (14mm; 5/8″ hex; 3/4″ reach; taper-seat plugs)
- 15° valve angle (except C5R and LS7)
- Bolt-down-type rocker arms (except LSX-DR, LSX-CT)
- Center-bolt valve cover hold-downs
- Fits Gen III and Gen IV Small Blocks only
12629064 Chevrolet Cylinder Head
- Aluminum performance head
- Fits any LS family engine with 4.000″ bore or larger
- 2.165″ hollow stem intake, and 1.590″ solid stem exhaust valves
- .550″ max valve lift
- As-cast L92 style intake ports
- D-shaped exhaust ports
- As-cast combustion chambers
- Uses bare head P/N 12629051
Head P/N 12629064 is assembled with the following:
- 12627970 Intake Valves
- 10166344 Valve Spring Retainers
- 12582719 Exhaust Valves
- 12482063 Intake Valve Stem Seals
- 12589774 Valve Springs
- 12482062 Exhaust Valve Stem Seals
- 10166345 Valve Locks.
Additional required components:
- 12610046 (2) or 19170419 (1) Gaskets
- 11562524 (20) Bolts
- 12558840 (10) Bolts
- 12571164 Spark Plugs
Engine application: L9H
L92 Cylinder Head Assembly
LS Family Production and C5R Aluminum Heads
Great cylinder-head airflow has been a key enabler of the LS-Series‘ exceptional performance. Chevrolet Performance delivers those power-building attributes to you with a range of production-style aluminum heads – from the LS6 heads for smaller-displacement engines to LS7 style heads for 427-inch-and-larger combinations, our aluminum heads benefit from GM‘s extensive research and development program, ensuring maximum airflow without compromises. In fact, many professional builders use our heads as straight bolt-ons, with no further machining. Many of our assembled heads use premium machining and materials, including CNC finishing and porting, along with lightweight, hollow-stem valves, sodium-filled exhaust valves and – on some heads – lightweight titanium intake valves.
Note: Chevrolet Performance heads will not fit 4.8L and 5.3L engines, due to their smaller bore sizes.
Aluminum LS Family Head Technical Notes:
- Manufactured from 319-T5 aluminum alloy
- High-efficiency combustion chambers
- Symmetrical intake and exhaust ports
- Angled spark plugs (14mm; 5/8″ hex; 3/4″ reach; taper-seat plugs)
- 15° valve angle (except C5R and LS7)
- Bolt-down-type rocker arms (except LSX-DR, LSX-CT)
- Center-bolt valve cover hold-downs
- Fits Gen III and Gen IV Small Blocks only
12629064 Chevrolet Cylinder Head
- Aluminum performance head
- Fits any LS family engine with 4.000″ bore or larger
- 2.165″ hollow stem intake, and 1.590″ solid stem exhaust valves
- .550″ max valve lift
- As-cast L92 style intake ports
- D-shaped exhaust ports
- As-cast combustion chambers
- Uses bare head P/N 12629051
Head P/N 12629064 is assembled with the following:
- 12627970 Intake Valves
- 10166344 Valve Spring Retainers
- 12582719 Exhaust Valves
- 12482063 Intake Valve Stem Seals
- 12589774 Valve Springs
- 12482062 Exhaust Valve Stem Seals
- 10166345 Valve Locks.
Additional required components:
- 12610046 (2) or 19170419 (1) Gaskets
- 11562524 (20) Bolts
- 12558840 (10) Bolts
- 12571164 Spark Plugs
Engine application: L9H
| Brand |
|---|
L92 Cylinder Head Assembly
12629064 Chevrolet Cylinder Head
- Aluminum performance head
- Fits any LS family engine with 4.000″ bore or larger
- 2.165″ hollow stem intake, and 1.590″ solid stem exhaust valves
- .550″ max valve lift
- As-cast L92 style intake ports
- D-shaped exhaust ports
- As-cast combustion chambers
- Uses bare head P/N 12629051
This part replaced by P/N 12629062. Click here for new part.
