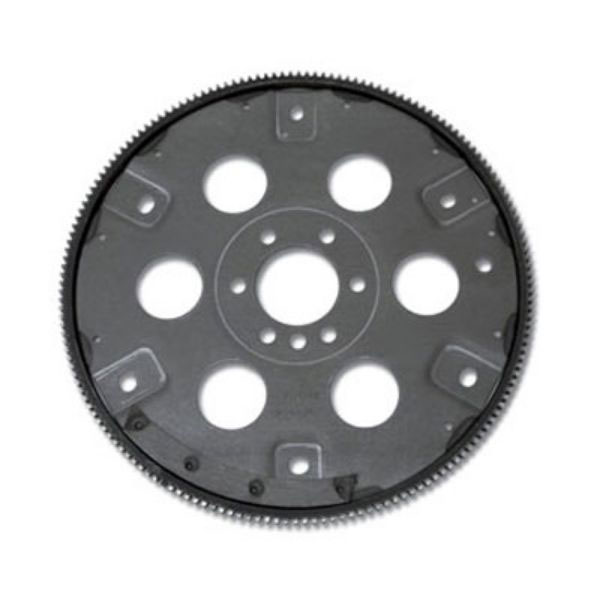

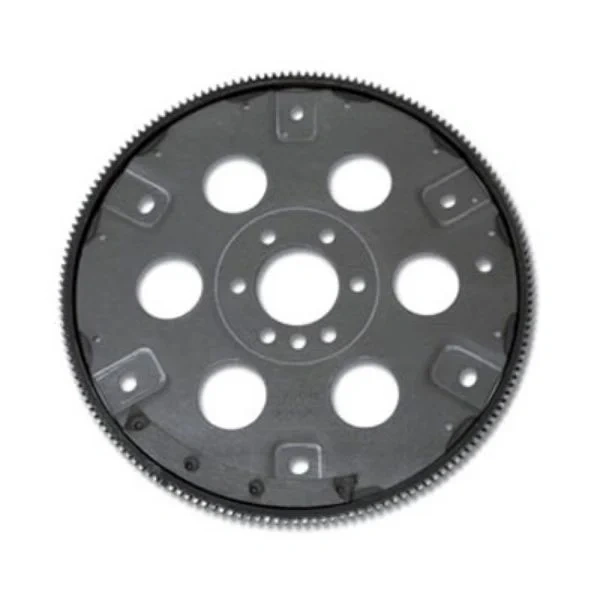

Flexplate – 14″ OD
- For 1986 and up externally balanced engines
- 1 Piece crank seal
- 14.000″ O.D.
- 10.750″; 11.500″ clutch diameter
Year of engine: 1986 and up
Outside diameter: 14.000”
Crank flange bolt pattern: 3.000″
Clutch diameter: 10.750″, 11.500″
Starter ring gear teeth: 168
Technical notes: For one-piece crank seal; for externally balanced engines.
Flexplate – 14.000″ OD
14088761 Chevrolet Flywheel
For 1-Piece Crank Seal
At the opposite end of the crankshaft from the balancer are flywheels and flexplates, which connect the engine to either manual (flywheels) or automatic (flexplates) transmissions. Chevrolet Performance offers both internally and externally balanced flywheels and flexplates. It is critical that you use the correct design for your engine application.
IMPORTANT: All Chevy Small-Block and Big-Block engines with one-piece crankshaft seal require an externally balanced flywheel or flexplate.
