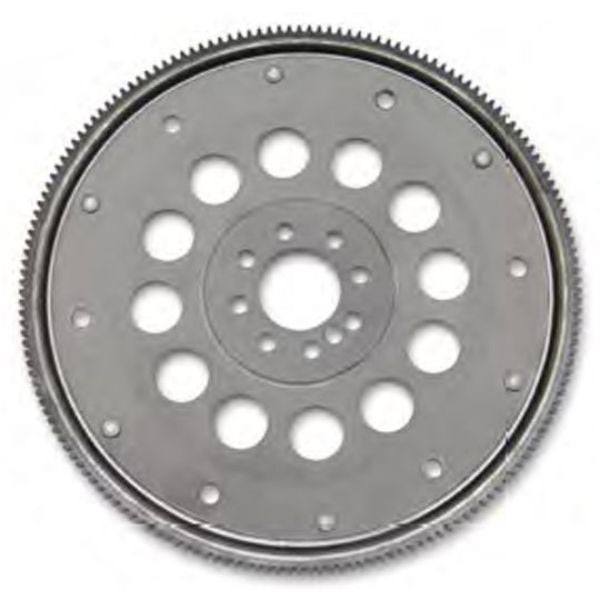

LS Flexplate – 14″ OD


  • Outside diameter 14″
  • 6-bolt crank flange bolt pattern
  • 11.5″ converter bolt pattern diameter
  • 1997 and newer LS engines
SKU: 19260102 Categories: ,

Flexplate – 14″ OD

P/N 19260102

  • Year of Engine: 1997 and newer
  • Outside Diameter: 14
  • Crank Flange Bolt Pattern: 6-bolt LS pattern; 3.110″ (79mm)
  • Converter Bolt Pattern Diameter: 11.5″ (292.1mm)
  • Starter Ring Gear Teeth: 168
  • Flexplate only used together with Spacer 12563532 and Bolts 19257940 (4L80 family)

Note: It is critical you use the correct design for your engine application.


Flexplate – 14″ OD

19260102 Chevrolet Flexplate

1997 and Newer LS Engines

At the opposite end of the crankshaft from the balancer are flywheels and flexplates, which connect the engine to either manual (flywheels) or automatic (flexplates) transmissions. Chevrolet Performance offers both internally and externally balanced flywheels and flexplates. It is critical that you use the correct design for your engine application.
