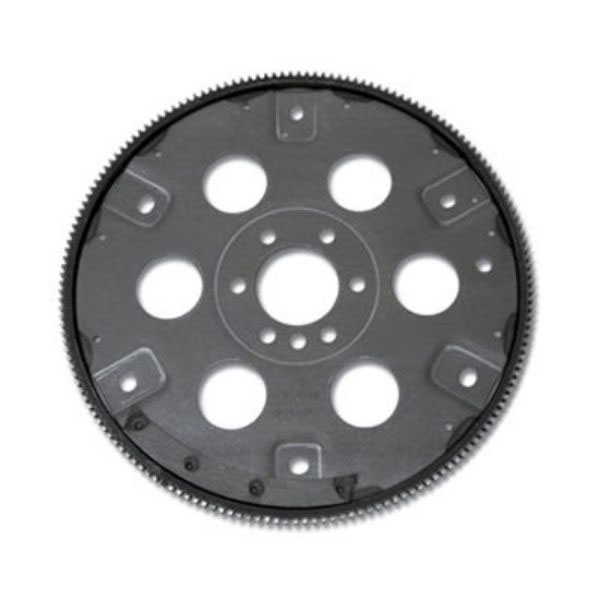

Flexplate – 14″ OD


  • For 1955-1985 internally balanced engines
  • 2-piece crank seal
  • 14.000″ O.D.
  • 10.750″; 11.500″ clutch diameter



P/N 471598

Year of engine: 1955-1985
Outside diameter: 14.000
Crank flange bolt pattern: 3.580″
Clutch diameter: 10.750″, 11.500″
Starter ring gear teeth: 168

Technical notes: For two-piece crank seal; for internally balanced engines


Flexplate – 14.000″ OD

471598 Chevrolet Flywheel

For 2-Piece Crank Seal

At the opposite end of the crankshaft from the balancer are flywheels and flexplates, which connect the engine to either manual (flywheels) or automatic (flexplates) transmissions. Chevrolet Performance offers both internally and externally balanced flywheels and flexplates. It is critical that you use the correct design for your engine application.

IMPORTANT: All Chevy Small-Block and Big-Block engines with one-piece crankshaft seal require an externally balanced flywheel or flexplate.
