LS-Series Camshaft – ASA
- 226° intake/236° exhaust duration
- .525 intake/.525″ exhaust max lift
- 110° cenerline
- For off-highway use
ASA Off-Highway Camshaft
- Duration (@ .050″): 226° intake/236° exhaust
- Maximum lift: .525 intake/.525″ exhaust
- Lobe centerline: 110°
Technical Notes: Cam requires valve spring P/N 12586484. Off-highway use only.

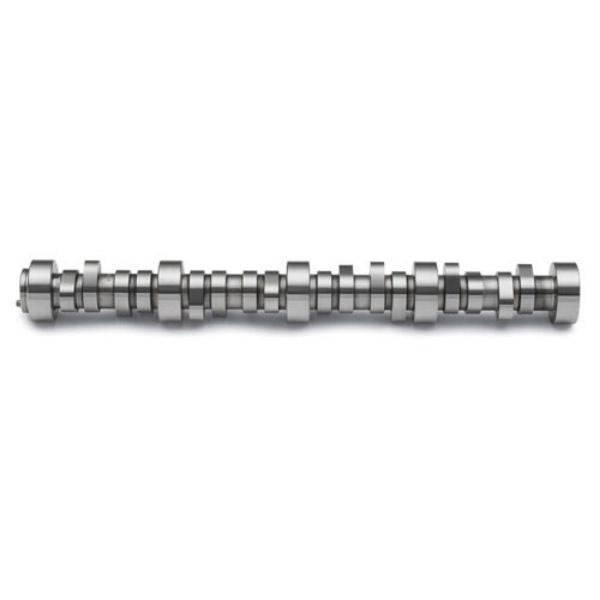

Note: Representative image.
88958770 Chevrolet Camshaft
All Chevrolet Performance LS camshafts are compatible with production-style LSX and C5R blocks, as well as all of our cylinder heads ﾖ although piston-to-valve clearance must be checked on some applications. We offer a broad range of production and racing-style camshafts that are factory-engineered to deliver maximum performance when paired with our high-flow cylinder heads. Save yourself the time and expense of going to an aftermarket camshaft supplier and build your LS engine with a genuine GM cam. We’ve also got the valvetrain components you need to finish the engine, including lightweight components designed for high-rpm performance.
