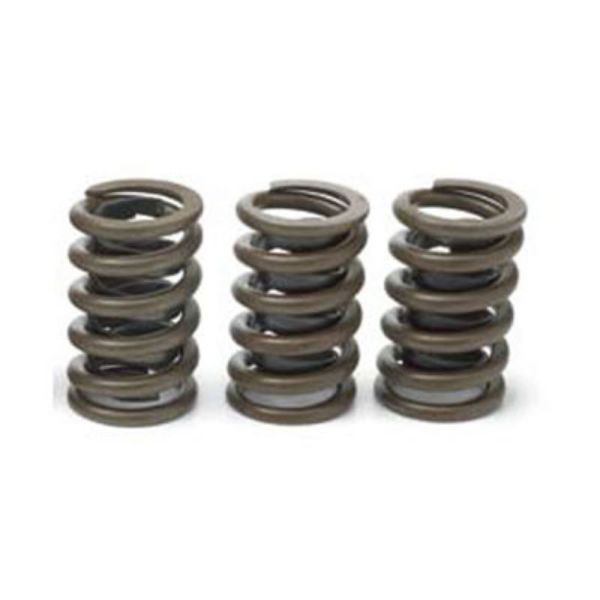

Valve Spring – 1.241″ OD


  • Single spring with damper
  • 1.241″ O.D.
  • 1.150″ solid height
  • Production spring for 350/290 HP engine

Valve Spring, 1.241″ O.D.

P/N 94666580

  • Spring type: single with damper
  • OD: 1.241″
  • Pressure at installed height: 80# @1.700″
  • Solid height: 1.150″
  • Average rate (lbs @ in): 267
  • Retainer: P/N 14003715
  • Valve seal kit: P/N 10132715

Technical notes: Production spring for 350/290 HP engines.


Small Block Valve Spring, 1.241″ O.D.

94666580 Chevrolet Valve Spring

350/290 Engine

When it comes to building the Small-Block engine for the project vehicle of your dreams, you don’t want to sacrifice performance or durability ヨ and that’s why you should trust Chevrolet Performance. They’ve been designing, testing and manufacturing Small-Block parts since 1955. Their engineers know what it takes to offer the finestquality parts for your Chevy.
