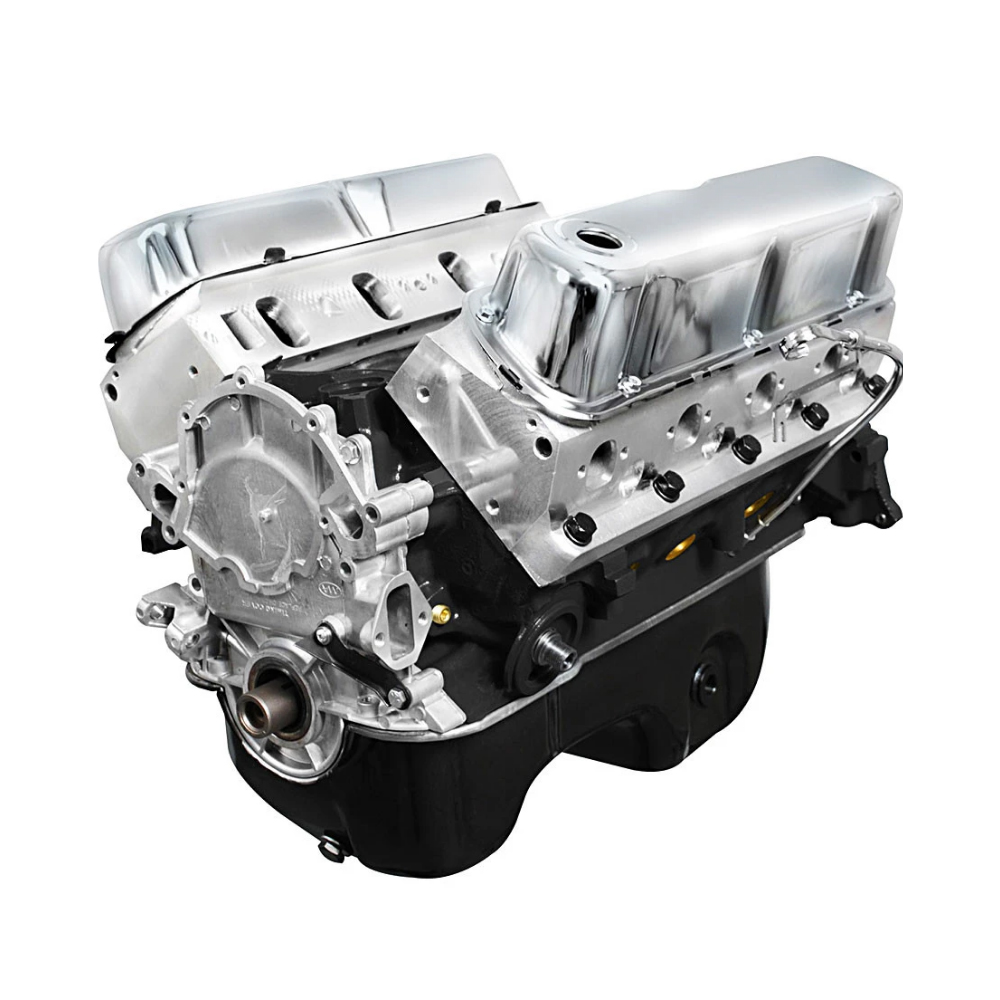

347CI Small Block – BluePrint Engines Small Block Ford 347CI Stroker Long Block Crate Engine


This Ford 347 Stroker Crate Engine is a great option if you’re looking for more power from your small-block Ford. Available from BluePrint Engines it comes with aluminum heads and a hydraulic roller camshaft. It also features:

  • HP & Torque: 415 HP / 415 FT-LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Forged Pistons

Available on backorder

Shipping is free, but there is a delivery fee for residential addresses.

SKU: BPEBP3474CT Category:

347CI Stroker Crate Engine

Available from BluePrint Engines, this 347 stroker is based on the small block Windsor and comes with aluminum heads and a hydraulic roller camshaft. This Ford 347 Stroker Crate Engine is a great option if you’re looking for more power from your small-block Ford. It has 415 hp and 415 ft. lbs. of torque and also features:

  • 385 hp @ 5,600 rpm/405 lb.-ft. @ 3,600 rpm
  • Aluminum Cylinder Heads
  • Hydraulic Roller Camshaft
  • Cast Steel Crankshaft
  • Forged Pistons

What’s Included

  • Handpicked seasoned block – square and parallel decked
  • Align honed main bearing bore
  • New BluePrint cast steel hydraulic roller crankshaft
  • Cylinders honed to within .0002 straightness and roundness
  • Aluminum heads
  • Valve covers
  • Brass freeze plugs
  • Painted oil pan
  • Dyno test results shipped with each engine

Important Notes

  • Not for use in pollution-controlled vehicles.
  • *A bronze distributor gear is NOT recommended on this engine
  • This engine is not compatible with factory fuel injection.
  • Engine timing cover is designed for standard rotation water pump ONLY.

347CI Stroker Crate Engine Tech Specs

  • P/N: BPEBP3474CT
  • Power: 415 hp / 415 lb.-ft. torque
  • Engine Type: Ford Small-Block V-8
  • Displacement (cu. in.): 347
  • Bore x Stroke (in.): 4.000 (bored .040 over) x 3.400
  • Block: Cast-iron with 2-bolt main
  • Crankshaft: New BluePrint cast steel crankshaft
  • Connecting Rods: Forged I-beam 5.400″ connecting rods
  • Pistons: Forged pistons
  • Intake Manifold: Dual plane (P/N 12366573)
  • Camshaft Type: Hydraulic roller
  • Valve Lift (in): .543 intake / .554 exhaust
  • Camshaft Duration: 218° intake / 226° exhaust
  • Cylinder Heads: BluePrint aluminum cylinder heads -HP9008
  • Valve Size (in): 2.02″ intake/1.60″ exhaust
  • Compression Ratio: 10.0:1
  • Ignition Timing: 34 Degrees Total at 3500 RPM
  • Balanced: 28oz External

30 month / 50,000 miles
