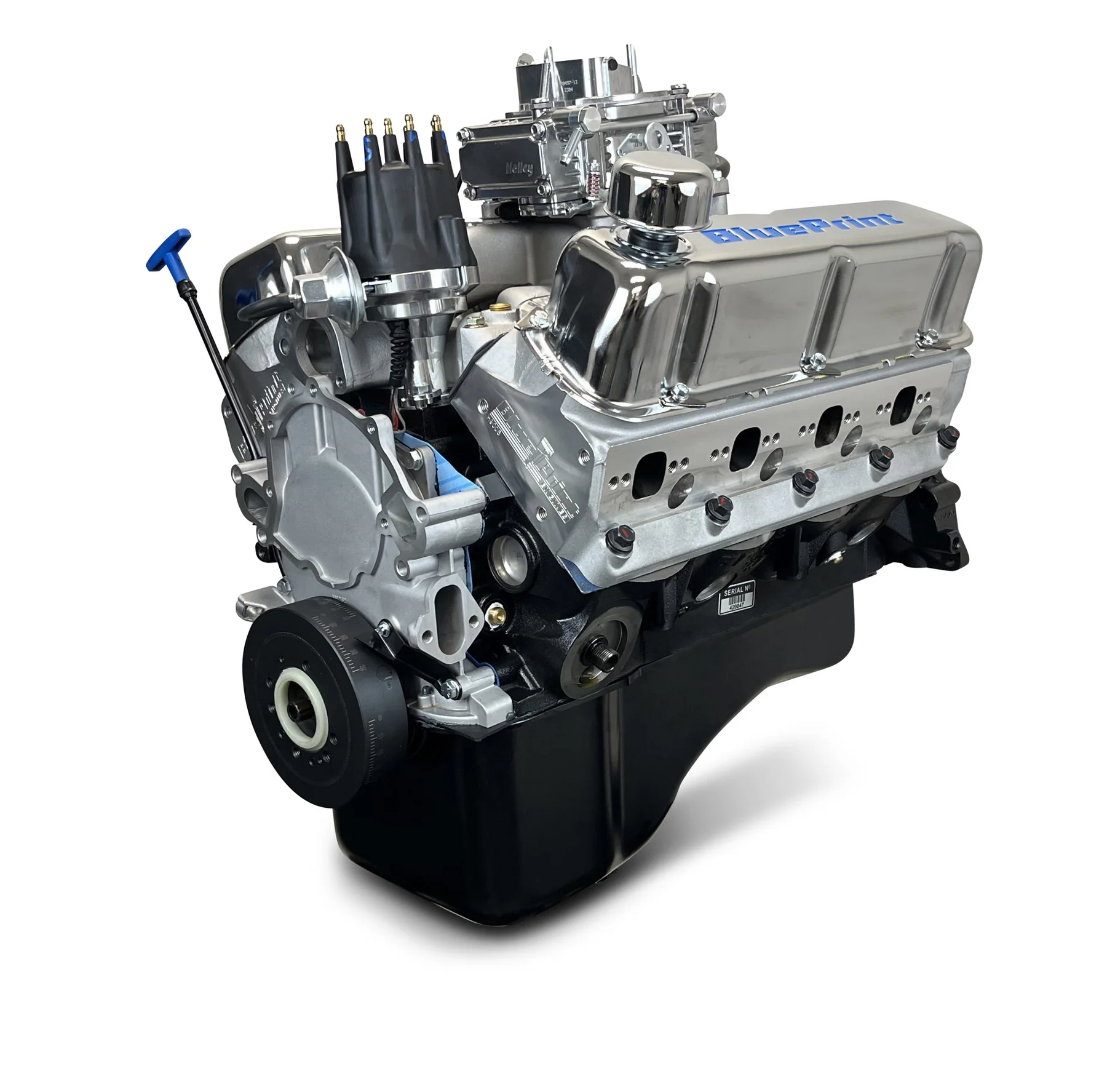

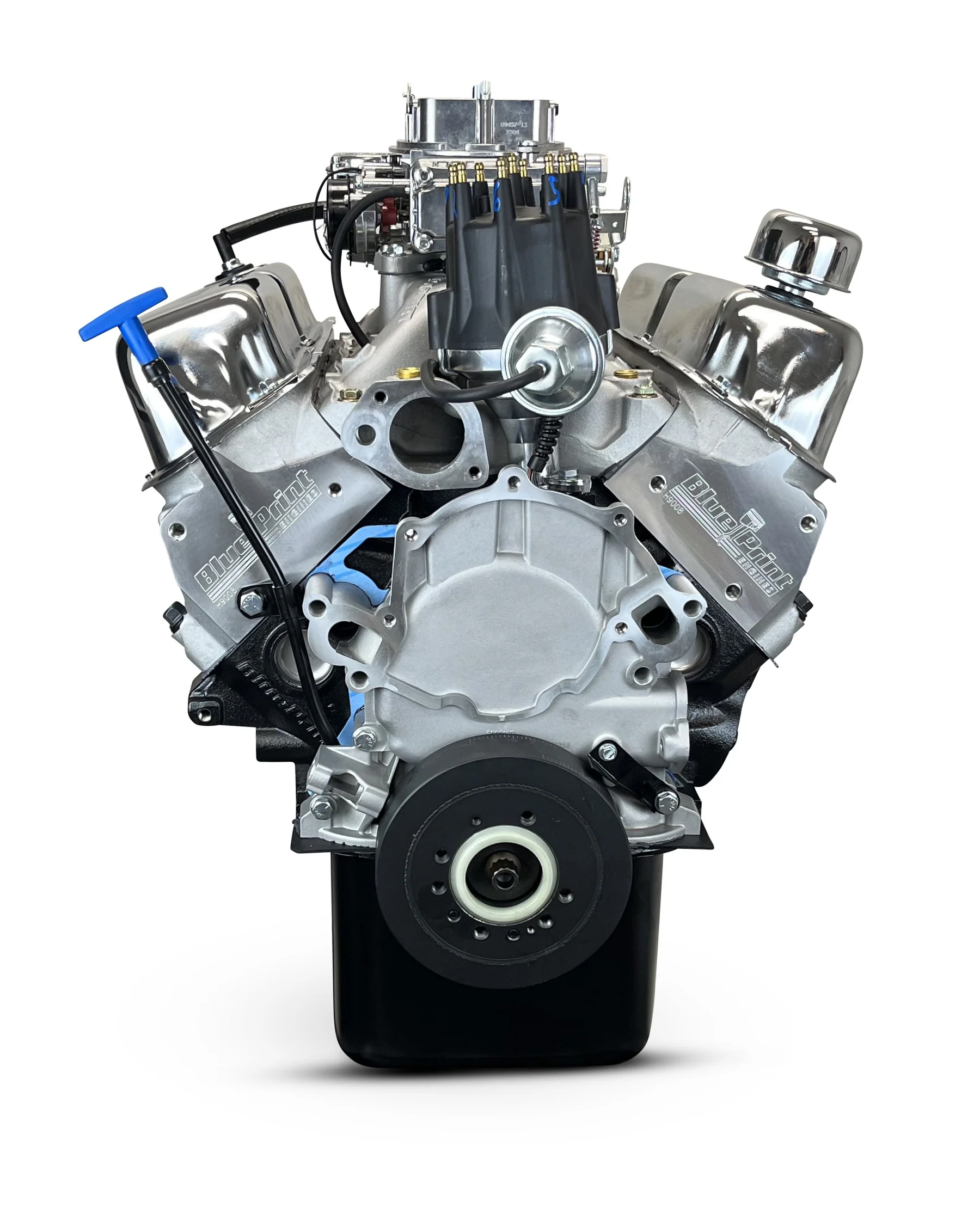

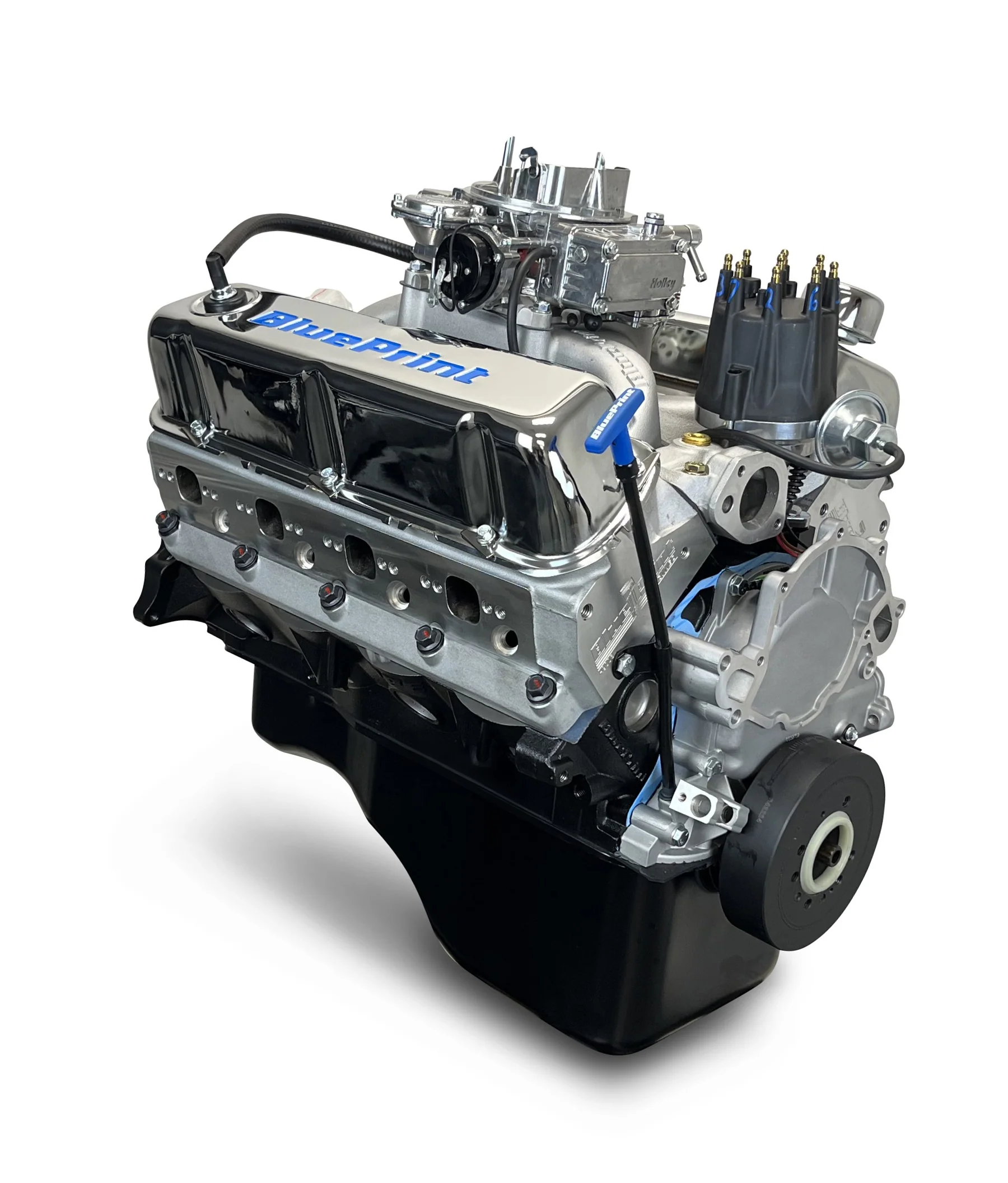

BluePrint Engines 347CI Stroker Crate Engine | Small Block Ford | Dressed with Distributor & Carburetor | Aluminum Heads | Roller Cam
Original price was: $7,749.95.$7,549.00Current price is: $7,549.00.
- HP & Torque: 415 HP / 415 FT LBS
- Compression Ratio: 10.0:1
- Blueprint Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Forged Pistons & Rods
- Description
- Additional information
- Block
- Rotating Assembly
- Cylinder Heads
- Cam Specs
- Ignition Timing
- Also Includes
- Warranty
Description:
- Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Cast Crankshaft
- Hydraulic Roller Cam
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000″ Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crankshaft
- 3.400″ Stroke
- Forged 5.400″ Connecting Rods
- Forged Pistons
- 28oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke
- Front Sump Oil Pan
- Intake Manifold
- Distributor
- Harmonic Balancer
- Valve Covers
- Timing Cover
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
| Weight | 500 lbs |
|---|---|
| Brand |
- Hand picked seasoned block
- Square and parallel decked
- Align honed main bearing bore
- Cylinders honed on computer controlled machine to within .0002 straightness and roundness
- Cylinders are sonic tested for thickness
- 2-Bolt Main
- 4.000″ Bored .040″ Over
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- New BluePrint Cast steel crankshaft
- 3.400″ Stroke
- Forged I-beam 5.400″ connecting rods
- Forged pistons
- 28oz External balance
- BluePrint Aluminum Cylinder Heads -HP9008
- 60cc chamber
- 2.02″ intake/1.60″ exhaust valves
- 190cc intake/65cc exhaust runners
- Cam Type: Roller
- .543 Intake .554 Exhaust
- 218 Intake / 226 Exhaust duration
- @ .050 – 112 degree lobe separation
- 34 Degrees Total at 3500 RPM
- Dual plane, satin aluminum intake manifold
- 600cfm carburetor
- Distributor
- Valve covers
- Painted oil pan
- Brass freeze plugs
- Dyno test results shipped with engine
30 Month/ 50,000 Mile
