LS3 E-ROD 6.2L Connect & Cruise Powertrain System with 6L80-E Automatic Transmission
$18,228.24
- LS3 E-ROD 6.2L (376 cu in) 430 hp Engine
- 6L80-E Six-Speed Automatic Transmission
- Engine and Transmission Control Modules
- CARB-Approved Emissions Legal (CARB EO# D-126-32)
- Engine available mid April from GM
- Exhaust Manifolds NOT INCLUDED
- Description
- Additional information
- Product Overview
- Dyno Chart
- Videos
- Installation
- Warranty
- Rebate
- Reviews (0)
LS3 E-ROD Connect & Cruise with 6L80-E Transmission
Engine Specs:
- LS3 6.2L (376 cu in)
- 430 hp @ 5,900 rpm
- 424 lb.-ft. @ 4,600 rpm
- 10.7:1 compression ratio
Transmission Specs:
- 6L80-E six-speed automatic
- Rated for up to 650 lb.-ft. of torque
- Three gearsets – one simple input planetary, two output (one compound)
- Ratio steps with a 6.04:1 overall spread
- 23.5 inches long (approx.)
More about Connect & Cruise Crate Powertrain Systems
The Complete Performance Package!
When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance‘s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine, automatic or manual transmission, electronic controllers and al the necessary wire harnesses. Even better, we deliver it for less than the cost of buying the components separately.
GM engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.
Chevrolet Performance E-ROD powertrain systems provide the purchaser complete peace-of-mind with a 36-month / 50,000-mile limited warranty.
Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!
NOTE: All components, engine, transmission, torque converter and controllers are ordered and delivered separately.
E-ROD Connect & Cruise Builders Guide

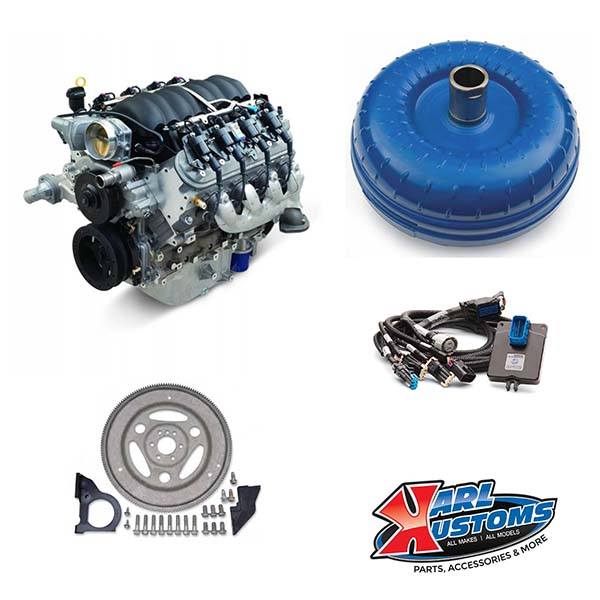

Each Chevrolet Performance E-ROD Connect & Cruise crate powertrain system includes:
- Brand-new, fully assembled crate engine
- Brand-new automatic or manual transmission
- SuperMatic transmission control module and harness
- Calibrated engine control module
- Two oxygen sensors and mounting bosses (for installation in the exhaust system)
- Mass airflow meter and mounting boss (for installation in the air intake system)
- Throttle pedal assembly (for use with the electronically operated throttle)
- Assembled wiring harness w/ fuse box and necessary cam and MAP sensor jumpers
- Oil pressure sensor that is compatible with the harness
- Instruction sheet
To facilitate a complete E-ROD installation, the builder will need to source additional components to complete the engine assembly and get the vehicle running, including:
- Fuel tank and fuel lines (re-circulating or returnless)
- Fuel pump – 58 psi (400 kPa) for all engines except LSA, which requires 65 psi (450 kPa)
- Fuel tank vent line from the tank to the evaporative emissions canister
- Purge line from the canister to the engine purge solenoid
- Air induction system that incorporates the mass airflow sensor
- Exhaust system behind the catalytic converters
Additionally, all E-ROD engines require a front-end accessory drive system suitable to the vehicle. The instructions included with each kit lists recommendations and Chevrolet Performance offers several configurations to suit different applications. Each allows the installer to easily delete air conditioning.
Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on installing an LS engine into older vehicles.
LS3 E-ROD* Connect & Cruise with 6L80-E Transmission
CPSLS3EROD6L80E System Components:
- 19421057 Engine
- 19366637 Transmission
- 19420358 Transmission Installation Kit
Note: Transmission controller and torque converter included with transmission.
Emissions-friendly Corvette and Camaro power for your project vehicle!
Rated at a strong 430 hp, the original E-ROD crate engine delivers big power with 50-state legal emissions compliance for countless pre-1995 cars, trucks and SUVs. Along with great power, its aluminum block and heads and composite intake manifold make it a lightweight performer, too, meaning your project vehicle will likely enjoy weight balance?less weight over the front axle.
*All Chevrolet Performance E-ROD systems include complete emissions equipment, including catalytic converters and a fuel tank evaporative emissions canister, along with an engine control module system.
About the E-ROD Engine Controller
The engine control module included with each E-ROD crate engine system is designed for true stand-alone performance in older vehicles. It does not engage a number of features associated with production-model systems, eliminating the possibility of “trouble codes” being set. It also includes a SES (service engine soon) LED indicator embedded in the fuse box. All that’s needed to get a vehicle running with the engine controller are power and ground sources, a high-pressure fuel pump and an electric cooling fan. CARB EO#: D-126-32
LS3 E-ROD Connect & Cruise with 6L80-E Transmission
Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on installing an LS engine into older vehicles.
LS3 E-ROD Connect & Cruise with 6L80-E Transmission
Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.
This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.
To receive the rebate:
- Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
- Complete all information requested on this form and mail it by January 31st, 2024, OR
- Submit your rebate online at www.gmpartsrebates.com before the same deadline
See rebate form for more details.
NOTE: Please allow up to 6-8 weeks for rebate processing.
