ZZ427/480 Connect & Cruise Powertrain System with 4L70-E Automatic Transmission


  • ZZ427/480 (427 cu. in.) 480 HP Engine
  • 4L70-E SuperMatic Four-speed Automatic Transmission
  • 10.1:1 Compression Ratio
  • The Legendary L88 with Modern Upgrades
REBATE AVAILABLE: $500/$750/$1,000 Prepaid VISA Gift Card From Chevrolet Performance. See 'Rebate' tab below for details.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: CPSZZ4274L70E Categories: , Tag:

ZZ427/480 Connect & Cruise with 4L70-E Automatic Transmission

Engine Specs:

  • ZZ427/480 (427 cu. in.)
  • 480 hp @ 6,000 rpm
  • 490 lb.-ft. @ 3,800 rpm
  • 10.0:1 compression ratio
  • 110 cc aluminum oval port heads (2.190 intake / 1.880 exhaust valves)
  • 1.7:1 ratio roller rocker arms
  • .527 intake / .544 exhaust camshaft lift

Transmission Specs:

  • 4L70-E four-speed automatic
  • Five-pinion gearsets
  • 3.06:1 first gear ratio, 0.70 overdrive ratio
  • Two-wheel drive

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine and automatic or manual transmission and, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence!

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, controllers and installation kits (where applicable) are ordered and delivered separately.

Additionally, all engines require a front-end accessory drive system. The instructions included with each kit lists recommendations and Chevrolet Performance offers several configurations to suit different applications that also allows the installer to easily delete air conditioning.


ZZ427/480 (480 hp) Connect & Cruise with 4L70-E Four-Speed Automatic Transmission

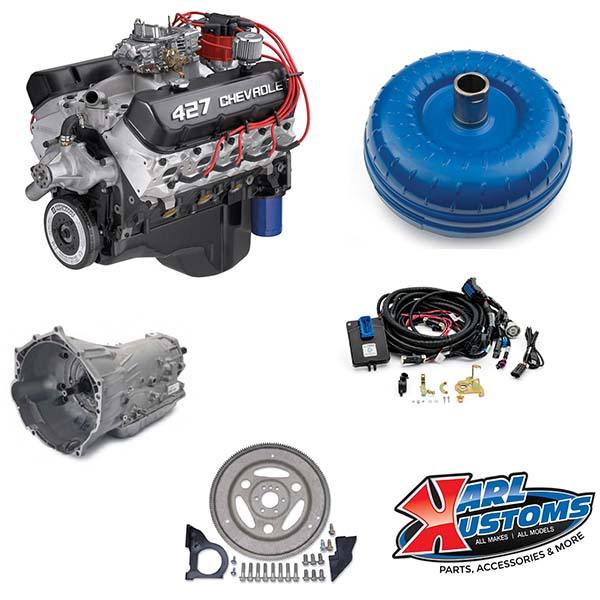

CPSZZ4274L70E System Components:

  • 19331572 Engine
  • 19368613 Transmission
  • 19299801 Torque Converter
  • 19332775 Transmission Controller
  • 19332781 Transmission Installation Kit

A Modern Take on the Classic L88

The L88 427 was the ultimate expression of Chevy’s production Big-Block power, combining a rigid iron cylinder block with lightweight aluminum cylinder heads and a single, four-barrel carburetor. Chevy Performance engineers have recreated that classic, raspy rat engine, but with updated components that can help enhance drivability?and performance!

This engine assembly features Chevy’s latest-generation block casting with four-bolt main caps, an all-forged rotating assembly for exceptional strength and durability, and a hydraulic roller camshaft?instead of the original L88’s flat-tappet cam?for greater drivability and a broader performance range. It also features aluminum oval-port cylinder heads with 2.19/1.88-inch valves and a pump-gas-friendly 10.1:1 compression ratio.

Whether you’re building a ’69 COPO Camaro resto-mod tribute, a modified mid-year Corvette or a street-tire class winner, this heritage-inspired crate engine delivers the performance that built the Big-Block’s legendary reputation.

Dyno Chart

ZZ427/480 Connect & Cruise with 4L70-E Transmission

Click here to download installation information.

ZZ427/480 Connect & Cruise with 4L70-E Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2024 and 12/31/2024
  2. Complete all information requested on this form and mail it by January 31st, 2025, OR
  3. Submit your rebate online at before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.

Prop65WARNING: These auto parts can expose you to chemicals including phthalates and lead. Installing or using these parts can expose you to other parts containing these chemicals and to engine exhaust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
