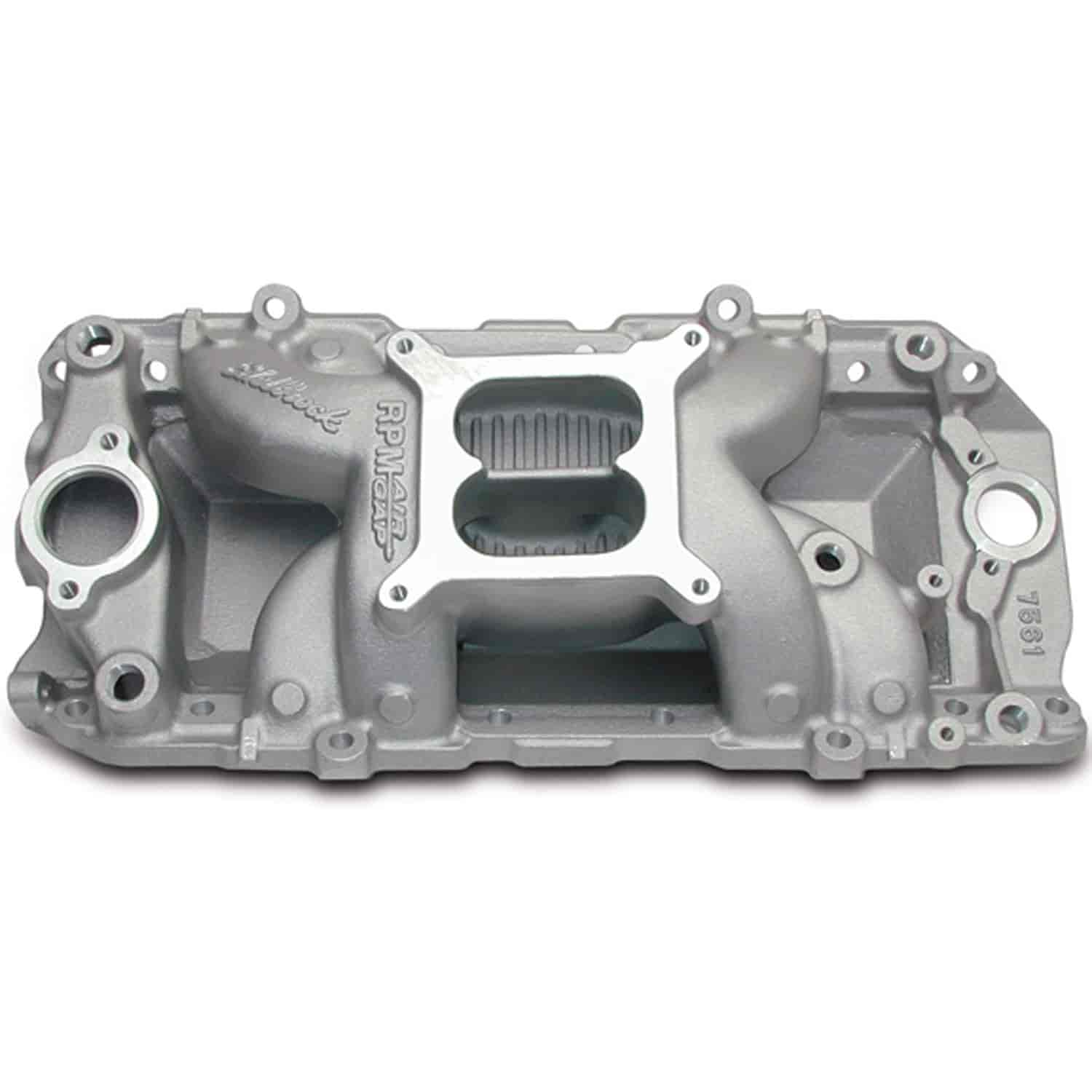

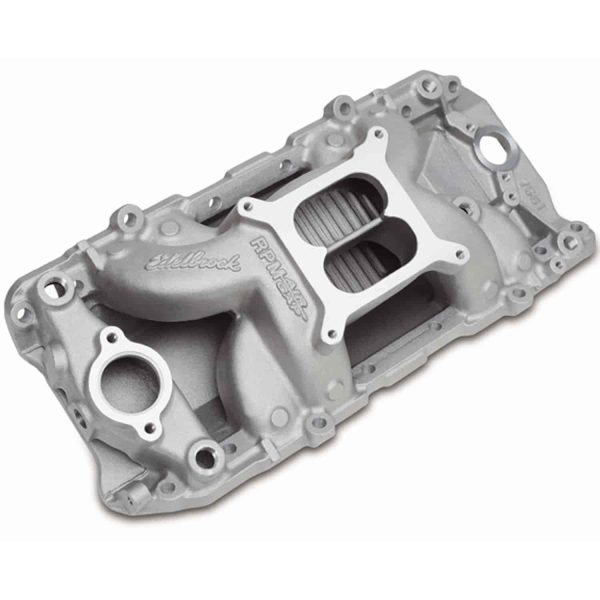

Edelbrock RPM Air-Gap 2-O Intake Manifold BB-Chevy 396-502 with oval port cylinder heads
$438.95
RPM Air-Gap 2-O Intake Manifold
- Big Block Chevy 396-502
- Oval Port Heads
- Square Bore Carb Flange (Non-EGR)
- 1500-6500 RPM Range
- Satin Finish
Big Block Chevy
Designed for Chevy 396-502 street applications with large oval port cylinder heads (1975-Earlier), the RPM Air-Gap incorporates the same race-winning technology that’s been used on the Victor Series competition intakes for years. Includes rear water outlets, two distributor clamp locations, and nitrous bosses. Accepts all late-model alternator and A/C brackets for the street. For square-bore carburetors only. No provision for exhaust-heated chokes and no exhaust crossover. Will not fit under stock hood of Corvette, 1965-67 Chevelle, or 1970-81 Camaro.
Installation Notes
- Port exit dimensions: 1.61″ x 1.93″
- Manifold height: (A) 4.45″ , (B) 6.00″
- Carb Pad Height: 5.22″
