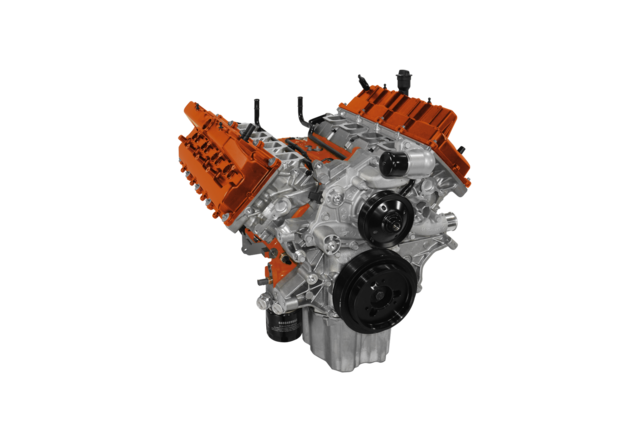

Hellcrate 6.2L Supercharged Crate HEMI® Long Block – Direct Connection (P5160618AA)


*** Q1 24CY Availability ***

The Hellcrate 6.2L Supercharged Crate HEMI® Longblock capable of exerting a monstrous 717 hp and 656 lb.-ft. of torque*.

This includes engine assembly components from valve covers with coil packs, cylinder head with valvetrain, engine block with crankshaft, connecting rods, piston and ring, camshaft and lifters, oil pump/pick-up/ pan, harmonic balancer, and front timing cover.

Shipping is free, but there is a delivery fee for residential addresses.

SKU: P5160618AA Category:
  • Includes engine assembly components from:
    • Valve covers with coil pack
    • Cylinder head with valvetrain
    • Engine block
    • Crankshaft
    • Connecting rods
    • Piston and ring
    • camshaft
    • lifters
    • Oil pump/pick-up/ pan
    • Harmonic balancer
    • Front timing coverFEATURES:
    • 376 cu. in.
    • 103.9 mm bore
    • 90.9 mm stroke
    • Cast iron block with 4-bolt powder metal main caps
    • Forged steel crank material
    • Connecting rods and floating pins with diamond-like coating
    • Forged piston material
    • Nodular iron camshaft
    • Valve/lift duration @ 0.15 mm. Int: 14.25 (0.561) mm – 278 deg. Hollow stems, Exh: 14.0 (0.551) mm – 304 deg. Sodium-filled stems
    • 356 aluminum, HEMIspherical combustion chamber cylinder heads
    • 54.3 mm intake valve size
    • 42 mm exhaust valve size
    • 9.5:1 compression ratio
    • 6,200 max RPM
    • Premium fuel recommended*HP/TQ numbers are reference purposes only as this is not sold as a complete drop in swap
  • Warranty:NO PARTS WARRANTY – “AS IS”
