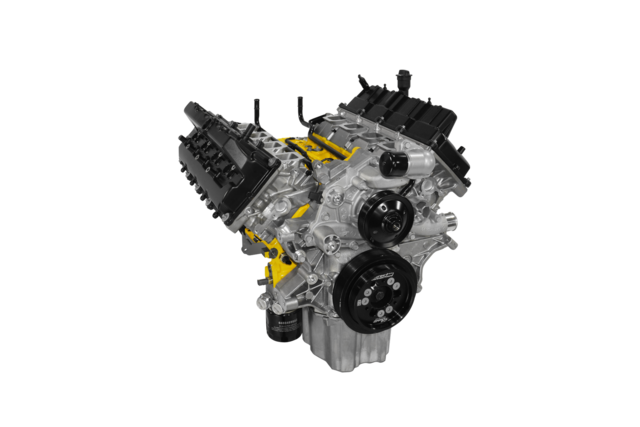

Hellephant C170 6.2L Supercharged Crate HEMI® Long Block – Direct Connection (P5160620AA)


*** Q1 24CY Availability ***

The Hellephant C170 6.2L Supercharged Crate HEMI® Long Block include several upgrades to optimize cylinder pressure capability and deliver maximum performance on premium or E85 fuel configurations. This engine Long Block is capable of 1,025 horspower at 6,500 rpm and 945 lb.-ft. of torque at 4,200 rpm pn E85 ethonol blen

Shipping is free, but there is a delivery fee for residential addresses.

SKU: P5160620AA Category:

Includes engine assembly components from:
• Valve covers with coil pack
• Cylinder head with valvetrain
• Engine block
• Crankshaft
• Connecting rods
• Piston and ring
• camshaft
• lifters
• Oil pump/pick-up/ pan
• Harmonic balancer
• Front timing cover

Highlighted features for the C170 Longblock include:
• Upgraded cylinder heads with upgraded valve guide and seat material
• Upgraded pistons with top land cutback to improve combustion sealing
• Upgraded connecting rods with new material and revised bushing material to support increased combustion pressure
• Main and rod bearing material upgraded to copper-lead for increased load capability
• Upgraded crank damper to absorb torsional impacts due to increased combustion pressure
• Improved head and main cap fasteners for increased clamp load capability
• Billet steel main caps for improved strength

• Engine type GEN III HEMI V8
• Displacement 376 cu. in.
• Bore 103.9 mm
• Stroke 90.9 mm
• Block cast iron block with 4-bolt powder metal caps
• Crank material forged alloy steel
• Connecting rods forged powder metal connecting rods with diamond-like coating wrist pins
• Piston material forged high-strength alloy
• 356 aluminum, HEMIspherical combustion chamber cylinder heads
• Recommended E85

*HP/TQ numbers are reference purposes only as this is not sold as a complete drop in swap
