ICT BILLET WIRE ADAPTER 4L60E TO 4L80E
$109.99

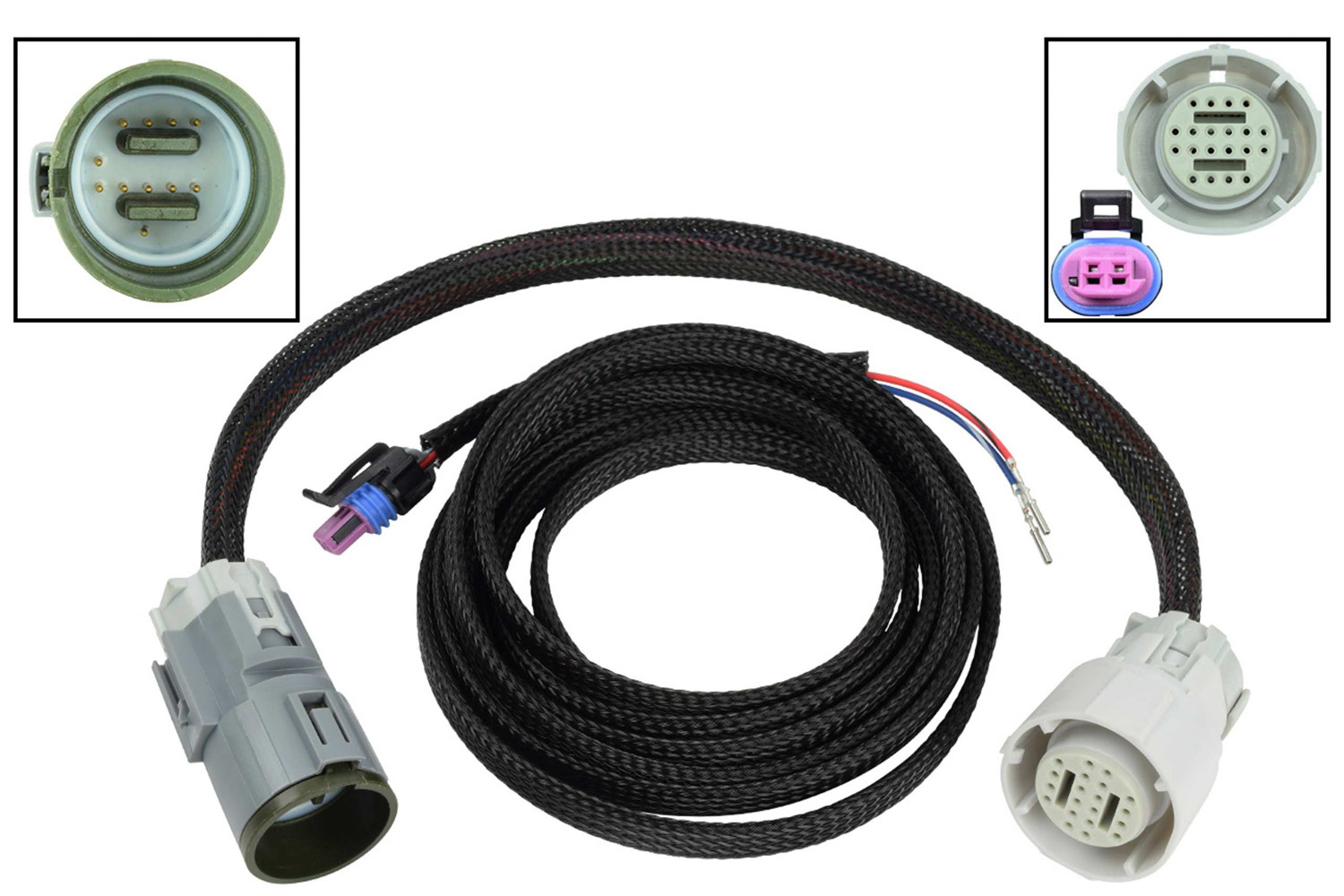

ICT Billet ICTWATRA30-18 Transmission Wiring Harness Kit for 4L60E 4L80E GM LS
Item Specifics
| Model | Transmission Wiring Harness Kit |
|---|---|
| For_Fitment | 4L60E to 4L80E |
| For_Vehicle | GM LS-Series |
- LS Transmission Adapter Harness-18″ (4L60E vehicle harness to 4L80E transmission)
- Assembled in Wichita, Kansas with USA made OEM grade TXL wire
- Fits GM Vehicles originally equipped with LS series 4L60E Transmissions
- Includes: 1 transmission adapter harness and 1 vehicle speed sensor connector
- Assembled with OEM tooling, OEM Delphi (connector, lock, seals, and terminals),(uses OEM harness wire colors) for a perfect fit
- Used to retain all appropriate electrical connections to transmission when converting from 4L60E to 4L80E
- VSS Pin Locations: Red(or Green) ECU Connector // Red w/ Black Stripe=Pin 22 ; Dark Blue w/ White Stripe=Pin 23
- Supplied VSS connector plugs into “front” Input Speed Sensor in transmission. Connector from engine harness plugs into rear VSS sensor in transmission.
