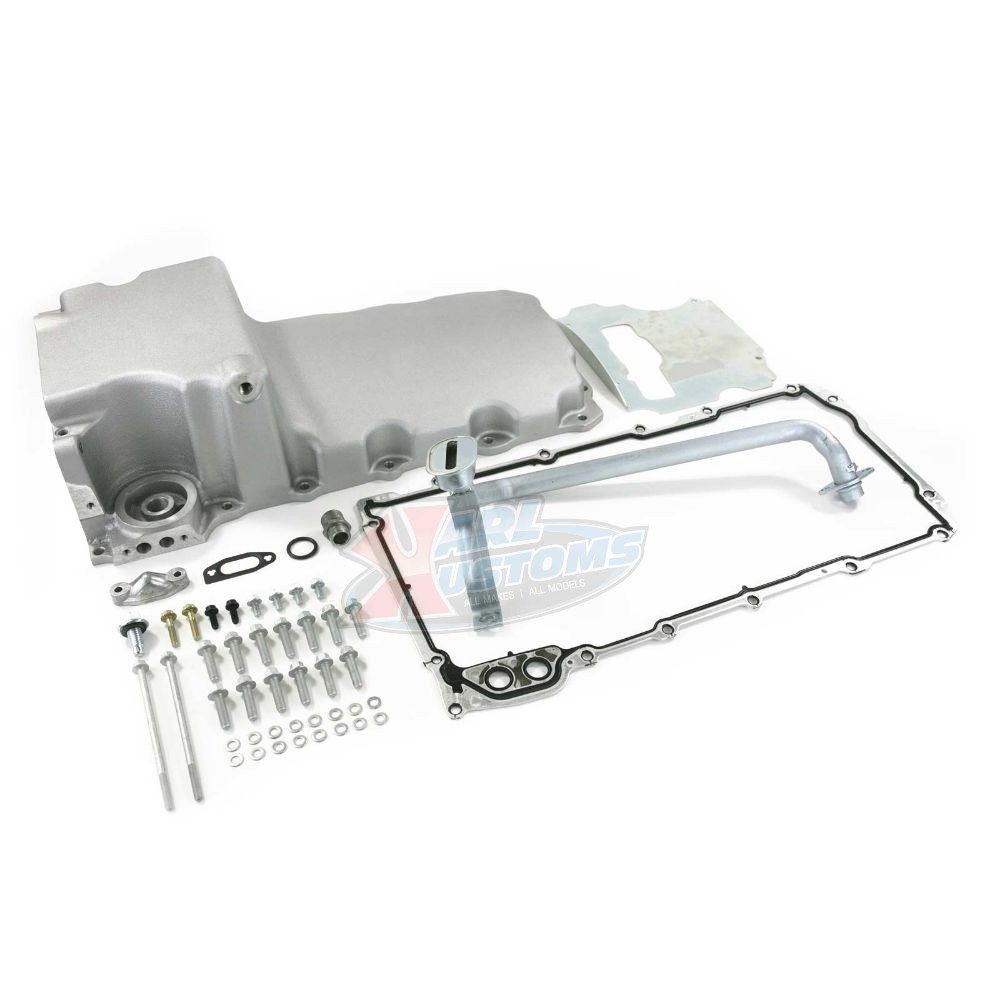

LS Conversion Swap Oil Pan Low Profile Retrofit Kit LS1/LS2/LS3 | 5.3/6.0

$229.95$289.99

  • Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
  • Fits most LS engines, except LS7 or LS9 dry sump applications
  • Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively
  • Will not fit GM G platform (G-Body) applications
SKU: KPP81074 Categories: ,

LS1/LS2/LS3 | 5.3/6.0 Swap Conversion Oil Pan

An oil pan serves as the reservoir for the oil within an engine, ensuring proper lubrication, cleaning, and cooling of its moving parts. LS engines are among the most popular for swaps for their low cost and big power potential – and this oil pan fits most LS engines (except LS7 or LS9 dry sump applications) but will require the use of LS3 style dipstick and tube:

  • GM #12669528 and 12625031
  • Holley 302-15 Dipstick/Tube Kit
  • Our KPP81079BK or KPP81079C

This oil pan uses the OE style filter such as AC Delco PF48/PF48E, K&N HP-1017 Wix 57060, or equivalent oil filter. It will not work in G-Body applications and will not fit dry sump engines (LS7, LS9).

This oil pan is durably constructed – it’s made of quality materials for durability and leak-free performance. It is designed for use with GM #12558253 windage tray, which may need to be altered to add clearance for the pick-up tube and engine position (fore/aft or height) may need to be adjusted for clearance, depending on application. Maximum stroke of 4.25

At Karl Kustoms we take pride in offering a comprehensive selection of parts for all makes and models of GM vehicles, spanning across various years. If your LS swap is ready for a new engine oil pan, contact us for help or browse our selection of oil pans online today.

Weight 16 lbs
Dimensions 13 × 25 × 7 in
Brand

Finish

Satin, Black, Polished

  • SUMP STYLE: Wet
  • SUMP LOCATION: Rear
  • SUMP DEPTH: 5.69″
  • MAXIMUM STROKE: 4.25″
  • OIL FILTER LOCATION: Stock
  • SUMP OIL CAPACITY: 5.5 Quarts
  • TOTAL OIL CAPACITY: 6.0 Quarts with Stock Filter
  • BAFFLED: Yes
  • WINDAGE TRAY: Not Included
  • OIL PICK-UP: Included
  • GASKET: Included
  • INCLUDED: Oil Pan Gasket, Sump Baffle, Oil Pickup Tube, Drain Plug, Oil Filter Stud, Oil Passage Cover, Mounting Hardware

Fitment: (CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED))

  • 4.8 L / 293 in³
  • 5.3 L / 325 in³
  • 5.7 L / 346 in³ commonly referred to as 350
  • 6.0 L / 364 in³
  • 6.2 L / 376 in³
