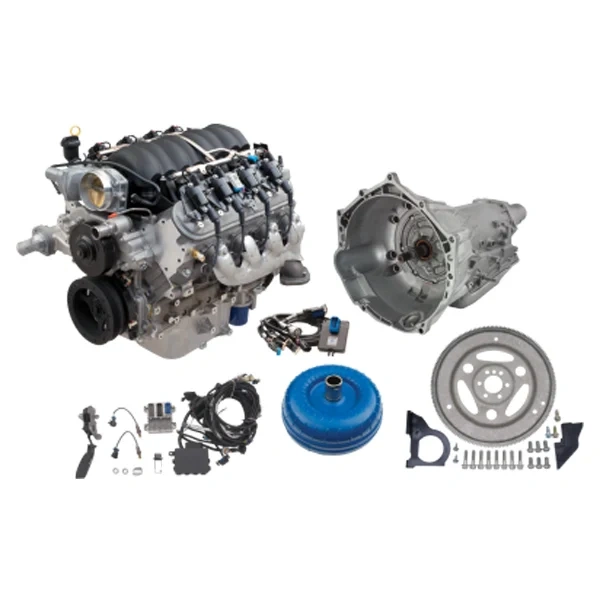

LS3 6.2L 4X4 Connect & Cruise Powertrain System with 4L70E Automatic Transmission
$19,013.36
- LS3 6.2L (376 cu in) 430 hpEngine
- 4L70-E Four-Speed Automatic Trans.
- Engine and Trans. Control Modules
- Torque Converter Included
- Exhaust Manifolds NOT INCLUDED
LS3 Connect & Cruise with 4L70-E Transmission
Engine Specs:
- LS3 6.2L (376 cu in)
- 430 hp @ 5,900 rpm
- 425 lb.-ft. @ 4,600 rpm
- 10.7:1 compression ratio
Transmission Specs:
- 4L70-E four-speed automatic
- Five-pinion gearsets
- 3.06:1 first gear ratio, 0.70 overdrive ratio
More about Connect & Cruise Crate Powertrain Systems
The Complete Performance Package!
When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine, automatic or manual transmission, electronic controllers and al the necessary wire harnesses. Even better, we deliver it for less than the cost of buying the components separately.
Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.
The Connect & Cruise lineup even includes several emissions-compliant E-ROD systems in both automatic and manual.
We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.
Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!
NOTE: All components, engine, transmission, torque converter and controllers are ordered and delivered separately.
Connect & Cruise Builders Guide
Each Chevrolet Performance Connect & Cruise crate powertrain system includes:
- Brand-new, fully assembled crate engine
- Brand-new automatic or manual transmission
- SuperMatic transmission control module and harness
- Calibrated engine control module
- Two oxygen sensors and mounting bosses (for installation in the exhaust system)
- Mass airflow meter and mounting boss (for installation in the air intake system)
- Throttle pedal assembly (for use with the electronically operated throttle)
- Assembled wiring harness w/ fuse box and necessary cam and MAP sensor jumpers
- Oil pressure sensor that is compatible with the harness
- Instruction sheet
To facilitate a complete installation, the builder will need to source additional components to complete the engine assembly and get the vehicle running, including:
- Fuel tank and fuel lines (re-circulating or returnless)
- Fuel pump – 58 psi (400 kPa) for all engines except LSA, which requires 65 psi (450 kPa)
- Air induction system that incorporates the mass airflow sensor
Additionally, all engines require a front-end accessory drive system. The instructions included with each kit lists recommendations and Chevrolet Performance offers several configurations to suit different applications. Each allows the installer to easily delete air conditioning.
Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on installing an LS engine into older vehicles.
LS3 4×4 Connect & Cruise with 4L70-E Transmission
CPSLS34L65E System Components:
- 19435098 Engine
- 19354328 Engine Control System
- 19368612 Transmission
- 19299802 Torque Converter
- 19302405 Transmission Control System
- 19259117 Transmission Installation Kit
Direct from the Corvette and Camaro to your project vehicle!
The LS3 is the power behind the C6 Corvette and 5th generation Camaro SS. It offers the lightweight advantage of an aluminum cylinder block, aluminum heads and a composite intake manifold over the heavy cast iron engines used in early cars. Reductions in frontal weight are beneficial to the overall balance and performance of your hot rod or muscle car.
Inside, the LS3 is filled with components designed for high performance and longevity. A sturdy reciprocating assembly combines with L92-type rectangular-port heads to deliver a 10.7:1 compression ratio. A high-lift, hydraulic roller camshaft with 0.551-inch of lift on the 2.16-inch intake valves and 0.522-inch lift on the 1.59-inch exhaust valves, enhances the LS3’s tremendous airflow and broad torque curve.
LS3 4×4 Connect & Cruise with 4L70-E Transmission
Click here to download engine installation information.
Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on performing LS engine swaps into older vehicles.
LS3 4×4 Connect & Cruise with 4L70-E Transmission
Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.
This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.
To receive the rebate:
- Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
- Complete all information requested on this form and mail it by January 31st, 2024, OR
- Submit your rebate online at www.gmpartsrebates.com before the same deadline
See rebate form for more details.
NOTE: Please allow up to 6-8 weeks for rebate processing.
WARNING: These auto parts can expose you to chemicals including phthalates and lead. Installing or using these parts can expose you to other parts containing these chemicals and to engine exhaust, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
