Quick Time Bellhousing – Chevy LS


  • Fits Chevy LS Engines with Muncie, Jerico, T5, TKO 500/600, TKX – GM Transmissions Can Also be Used with Gen V LT1/LT4 Engines
  • Transmission Bore 4.685 In
  • Bellhousing Depth 6.100 In
  • Weight 22 Lbs
  • SFI Certified @ 6.1
SKU: QTMRM-6036 Category:

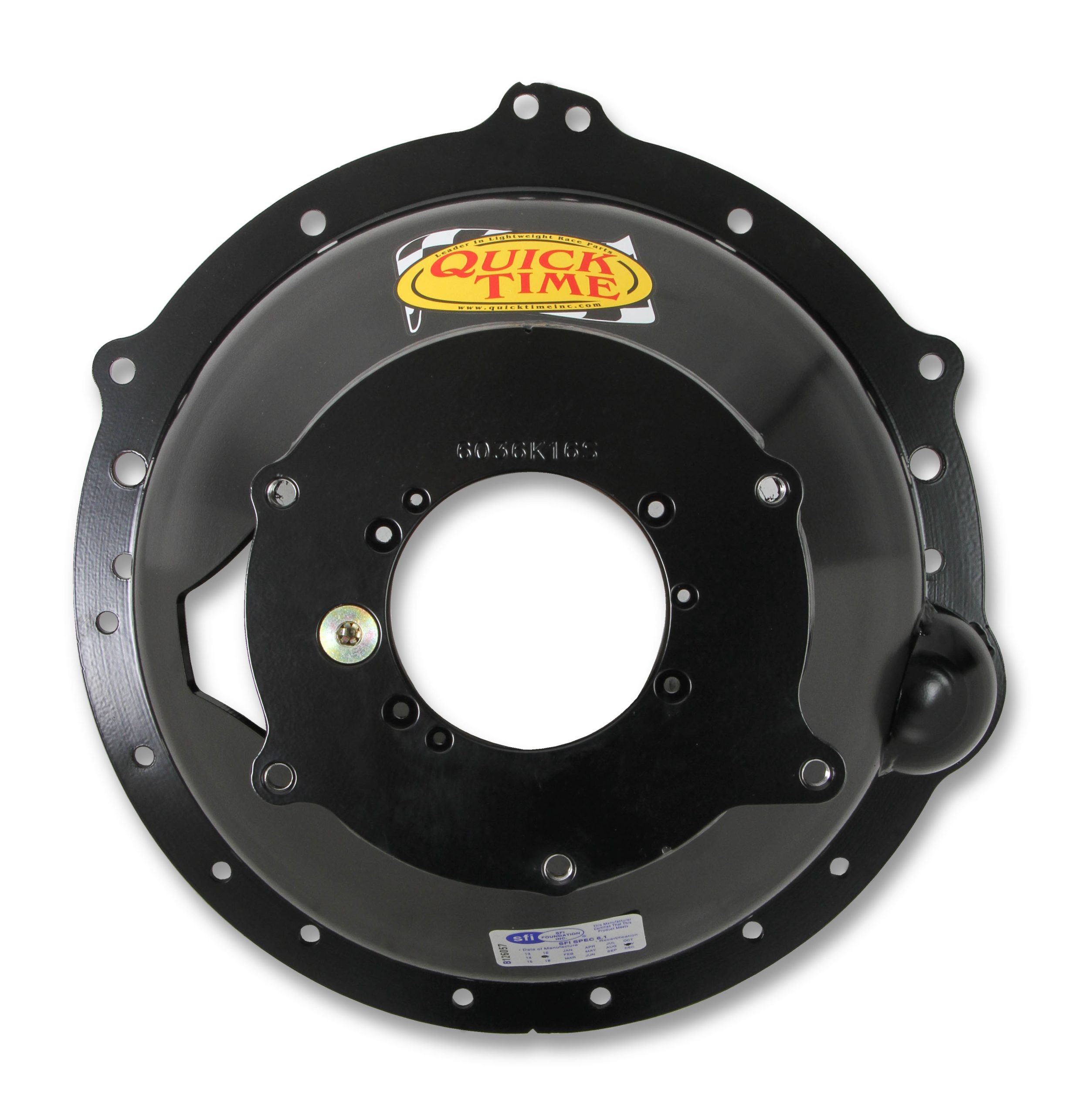

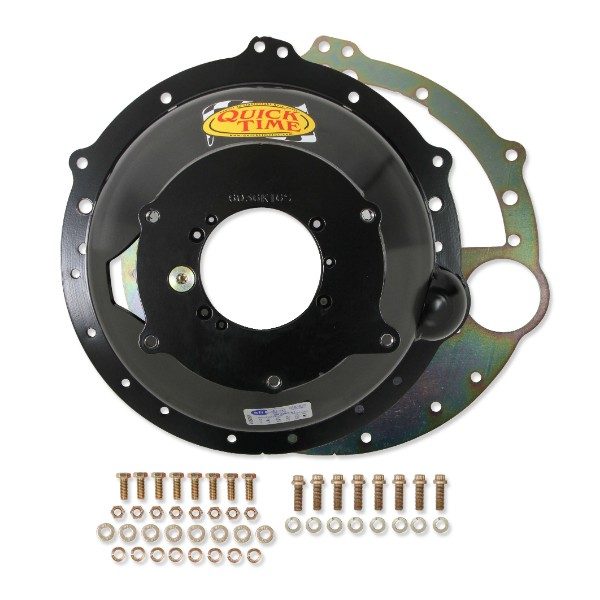

The Quick Time RM-6036 bellhousing connects GM LS engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

  • Standard Left Hand Fork Or Hydraulic Bearing
  • Fits Up To A 168 Tooth Flywheel With 11 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
Weight 31.7 lbs
Dimensions 18.7 × 8.4 × 18.6 in



Manufacturer Part Number


Perfect fit for Chevy LS engines with Muncie, Jerico, T5 or TKO 500/600 Chevy transmissions can also be used with late model LT1 and LT4 engines.

Brand Quick Time
Certification 6.1 SFI
Clutch Diameter N/A
Clutch Operation Mechanical or Hydraulic
Color Black
Emission Code 5
Engine Chevy LT1
Chevy LT4
GM Small Block Gen III/IV (LS Based)
Engine Make Chevrolet

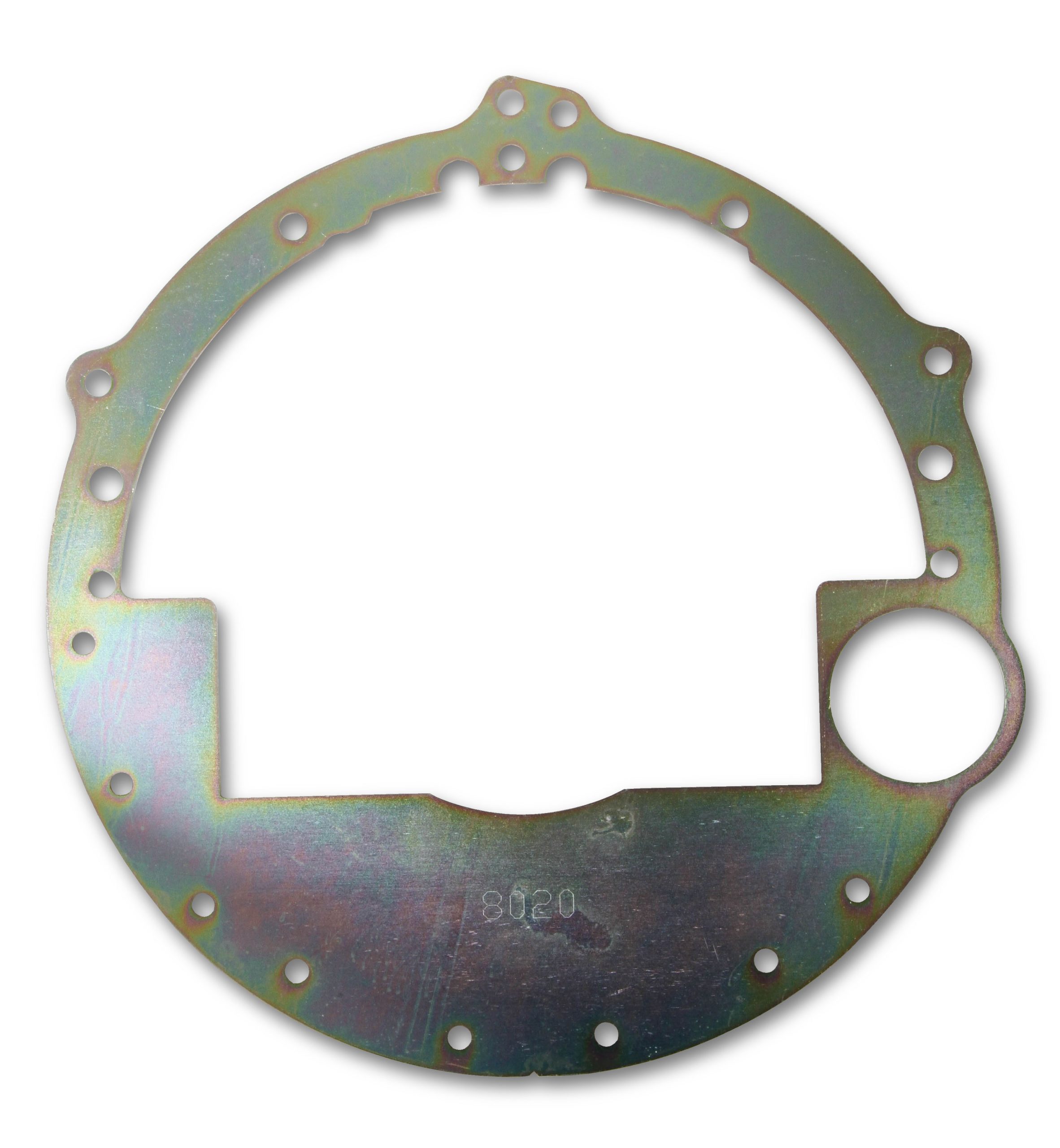

Engine Plate RM-6034-C
Finish Semi-gloss
Flywheel 153/168 Tooth
Height 6.000 inch
Height (in) 6
Make Chevrolet
Material Steel
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Starter OE
Trans Bore 4.688
Trans. Bore Diameter 4.687 inch
Transmission Bert Racing
Brinn Racing
TKO 500/600 GM
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
UPC 084041029015
Part Number RM-6036
