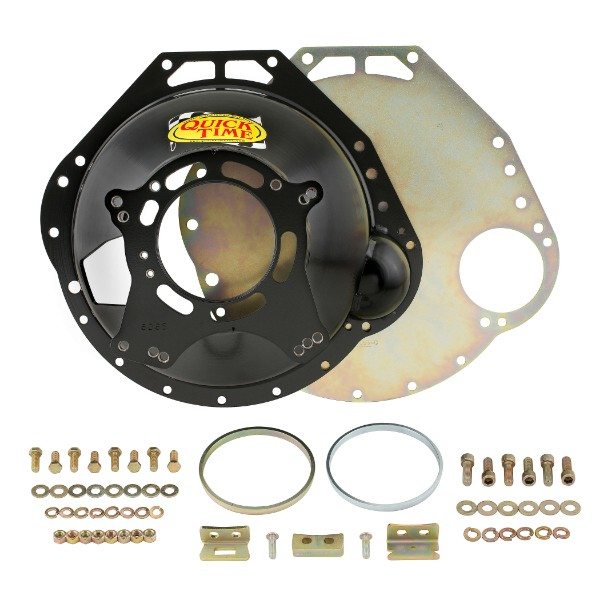

Quick Time RM-6065 Bellhousing Small Block Ford 5.0/5.8 To Ford TKO/3550/T5


  • Transmission Bore Diameter 4.85 In / 4.91 In
  • Bellhousing Depth 6.925 In
  • Weight 22 Lbs
  • Made In The USA
SKU: QTMRM-6065 Category:

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

  • Designed For Ford OE Fork Or Cable Style Bearing
  • Fits Up To 157 Tooth Flywheel And 10.5 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
Weight 36.75 lbs
Dimensions 18.6 × 8.5 × 18.6 in



Manufacturer Part Number


Perfect fit for Small Block Fords with TKO, TR3550, or T5 transmissions.
