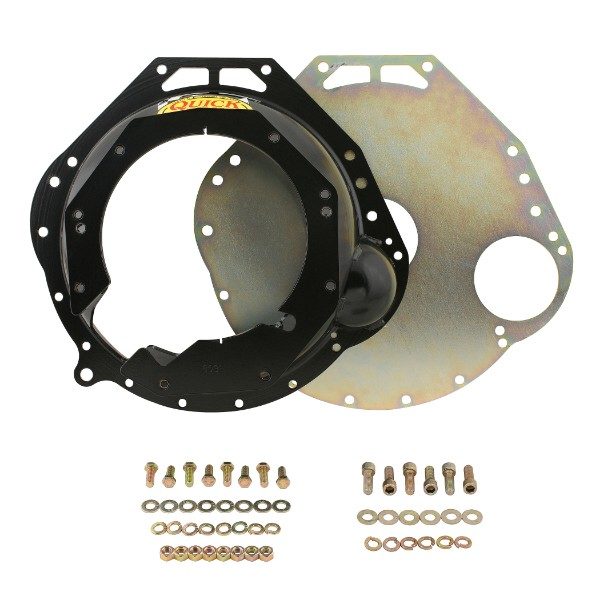

Quick Time RM-8031 Bellhousing Ford 5.0/5.8 To T56 Ford – Fork at 7:00


  • Transmission Bore T56 Ford
  • Bellhousing Depth 5.34 In
  • Weight 20 Lbs
  • Made In The USA
SKU: QTMRM-8031 Category:

The Quick Time RM-8031 bellhousing connects small block Ford engines to T-56 Ford transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The clutch fork opening on this bellhouisng is at the 7:00 position. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

  • Designed To Use Hydraulic Bearing Or Viper Fork
  • Fits Up To 157 Tooth Flywheel And 10.5 in Clutch
  • Utilizes OEM Style Starter Attachment / Placement
Weight 34.3 lbs
Dimensions 12.3 × 8.1 × 18.6 in



Manufacturer Part Number


Bellhousing ヨ Ford 5.0/5.8L
