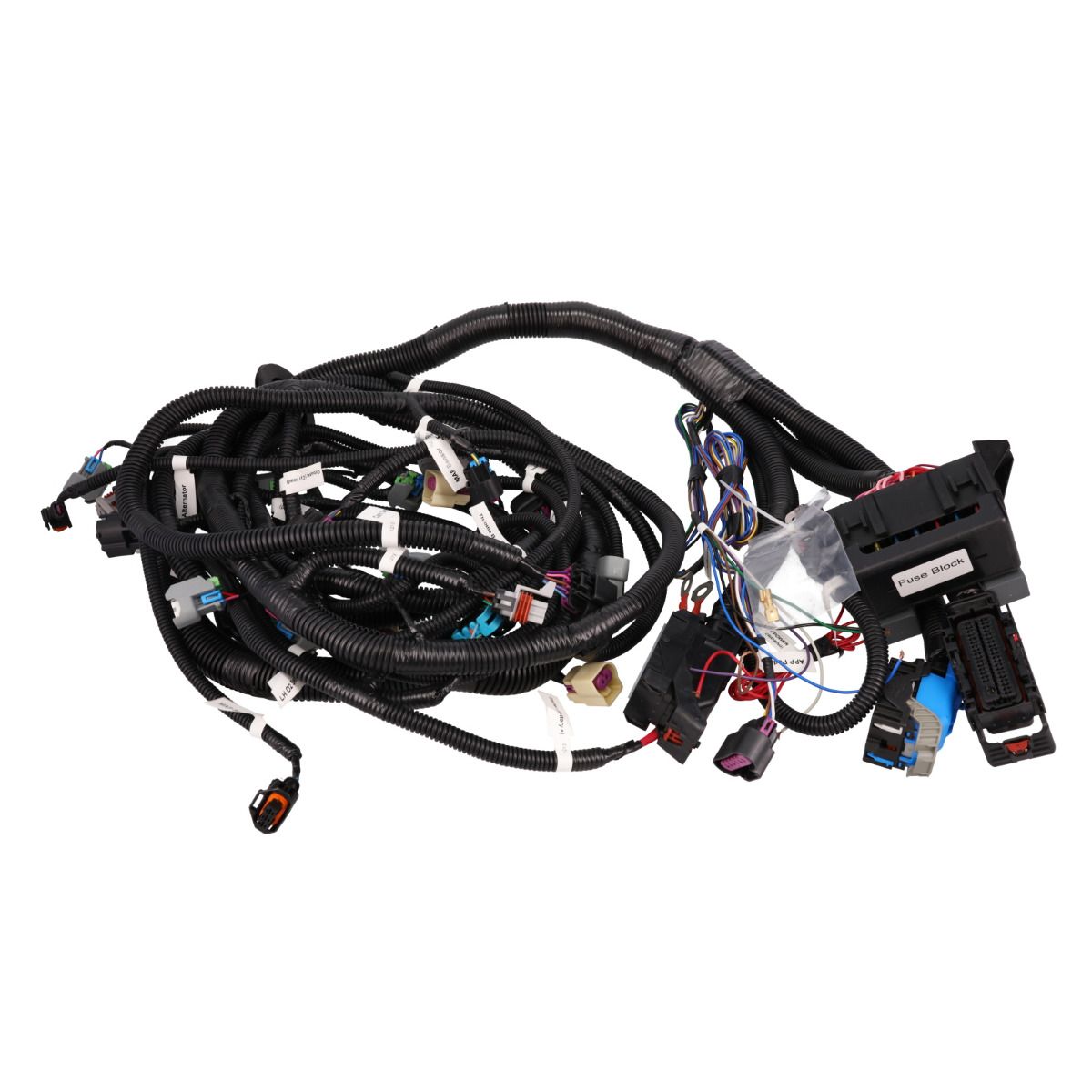

Standalone Wiring Harness for Drive-by-Wire LH6/LY5/LMG/LH8 with 4L60E Automatic Transmission


09-14 Trucks*

  • *Fits drive-by-wire applications with 5.3 L LH6, LY5, LMG, and LH8 engines and 4L60E automatic transmissions
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.
SKU: KPPWH1213 Categories: ,

An LS engine swap is a no-brainer when it comes to adding some affordable horsepower to a project car, but any swap comes with its share of headaches, including wiring. That’s where TSP’s engine and transmission wiring harness comes in. It is designed for 5.3 L LH6, LY5, LMG, and LH8 engines from ’09 – ’14 drive-by-wire GM trucks with 4L60E automatic transmissions.

Included Connectors:

Fuse/Relay Box
Fuel Pump Control
Fan Controls
Check Engine Light, Speedometer, Tachometer, OBD2
Accelerator Pedal and Throttle Body Control
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankfshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Transmission Control
Knock Sensors
