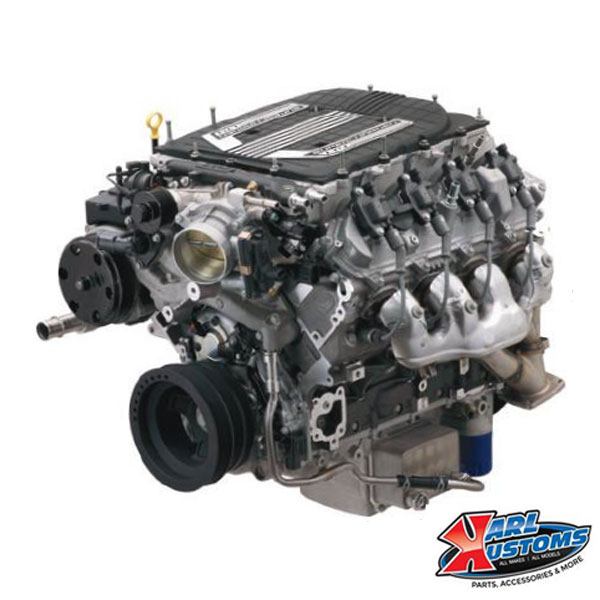

E-ROD LT4 6.2L SC Automatic Wet Sump Chevrolet Performance Crate Engine
- 650 hp @ 6,000 rpm/650 lb.-ft. @ 4,400 rpm
- 8-speed automatic transmission
- Wet Sump oiling system
- CARB EO#: D-126-51
Available on backorder
LT4 E-ROD 6.2L SC Wet Sump Crate Engine, 8-Speed Automatic Transmission
650 hp @ 6,400 rpm / 650 lb.-ft. @ 3,600 rpm
CARB EO#: D-126-51
E-ROD LT4 Specs:
LT4 6.2L SC (376 cu in)
650 hp @ 6400 rpm
650 lb-ft @ 3600 rpm
10:1 compression ratio
Note: LT4 Dry Sump E-ROD System is not available. GM automatic transmissions are typically equipped with 40-tooth reluctor wheels for vehicle speed sensor output.
To facilitate a complete E-ROD installation, the builder will need to source additional components to complete the assembly and get the
vehicle running, including:
– Fuel tank
– Fuel lines (returnless)
– Fuel pump – 58 psi (400 kPa) for LC9 and LS3 or 65 psi (450 kPa) for LSA, LS9, LT1 and LT4
– Fuel tank vent line from the tank to the evaporative emissions canister
– Purge line from the canister to the engine purge solenoid
– Air induction system that incorporates the mass airflow sensor
– Exhaust system behind the catalytic converters
All E-ROD engines require a front-end accessory drive system suitable to the vehicle. The instruction manual included with each kit offers recommendations for the accessory drive kit, as well as the transmission, gear ratios and more. Chevrolet offers several configurations of accessory drive systems to suit different applications, and each allows the installer to easily delete air conditioning.
LT4 E-ROD 6.2L SC Wet Sump Crate Engine
19433067 Chevrolet Motor
8-Speed Automatic Transmission
The latest addition to the E-Rod family of 50-state street legal engines is the LT4, the supercharged big brother of the direct injected LT1, delivering a smooth 650 horsepower. Original equipment in the ZO6 Corvette and the ZL1 Camaro, the LT4 E-ROD system includes all of the components needed to install in your hot rod.
Chevrolet Performance E-ROD Crate Engines include a 36-month or 50,000-mile (80,000 kilometer) limited warranty.
