LS3 Accessory Drive System

$2,103.48

  • All-inclusive
  • High mount A/C provides clearance to frame
  • For most non-LSA and non-LS9 SC engines
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.
SKU: 19421448 Categories: ,

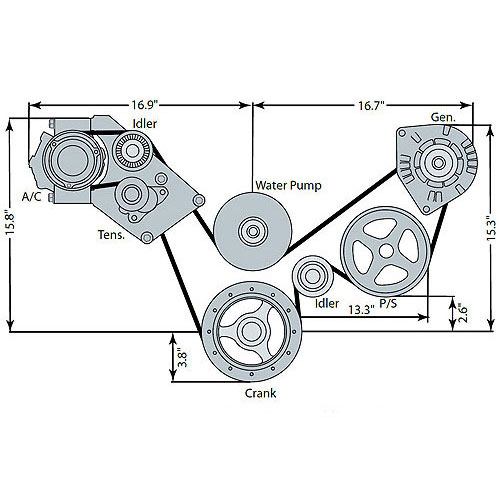

LS3 Accessory Drive System

P/N 19421448

  • High mount A/C provides clearance to frame
  • Fits most non-LSA and non-LS9 SC engines

The system includes:

19331503 (1) Instruction Sheet
19331504 (1) Belt
19355804 (1) Bracket
12568996 (1) Pulley Asm – Belt Idler
12647765 (1) Tensioner
84629501 (1) Pump Asm – P/S
10317980 (1) Cap Asm – P/S Fluid Reservoir
26046502 (1) Reservoir Asm – P/S
12578067 (1) Bracket Asm – Alt & P/S Pump
11516357 (3) Bolt – Alt & P/S Bracket
11516697 (2) Bolt – P/S Pump
11515758 (2) Bolt – Brace & P/S Pump
12568997 (1) Pulley – P/S Pump
25888970 (1) Altanator Asm
11588745 (1) Bolt – Alt & P/S Bracket
11588725 (2) Tensioner
15907878 (1) Hose – P/S Fluid Reservoir w/clamps
20762515 (1) Compressor
22942442 (1) Emblem
11588752 (3) Bolt-Bracket to Head, M10x1.5×45
11588740 (2) Bolt – Bracket
11546413 (4) Bolt – Altanator & Bracket Compressor
12555693 (1) Brace – P/S Pump Front
12580774 (1) Pulley

Replaces old P/N 19355805.

Brand

Replaces/Supersedes

19355805
