Sale!

LT1 6.2L Wet Sump Connect & Cruise Powertrain System with 4L70-E Automatic Transmission

$20,245.21

  • LT1 6.2L (376 cu in) 460 hp Engine
  • 4L70-E Four-Speed Automatic Transmission
  • Wet Sump Oiling System
  • Engine and Transmission Control Modules

Shipping is free, but there is a delivery fee for residential addresses.

SKU: CPSLT14L70EW Categories: , Tag:

LT1 6.2L Wet Sump Connect & Cruise with 4L70-E Transmission

Engine Specs:

  • LT1 6.2L (376 cu in)
  • 460 hp @ 6,000 rpm
  • 465 lb.-ft. @ 4,600 rpm
  • 11.5:1 compression ratio
  • Direct Injection spark ignition
  • Internally balanced
  • Premium fuel recommended

Transmission Specs:

  • 4L70-E four-speed automatic
  • Five-pinion gearsets
  • 3.06 first gear ratio, 0.70 overdrive ratio
  • 30.75 inches long (approx)

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine, automatic or manual transmission, electronic controllers and al the necessary wire harnesses. Even better, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.

The Connect & Cruise lineup even includes several emissions-compliant E-ROD systems in both automatic and manual.

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, torque converter and controllers are ordered and delivered separately.

Installation Notes:

  • Engines shipped with high-pressure direct-injection fuel pump installed
  • Comes with LT1 Engine Control System, P/N 19303137 which includes the electronic throttle pedal that is required for throttle input to the ECU
  • Intended for pre-1976 street vehicles, or any off-road vehicle
  • Not intended for marine applications
  • Front-End Accessory Drive Kit, P/N 19329990, can be ordered separately
  • 8-bolt crankshaft flange
Brand

LT1 6.2L Wet Sump Connect & Cruise with 4L70-E Transmission

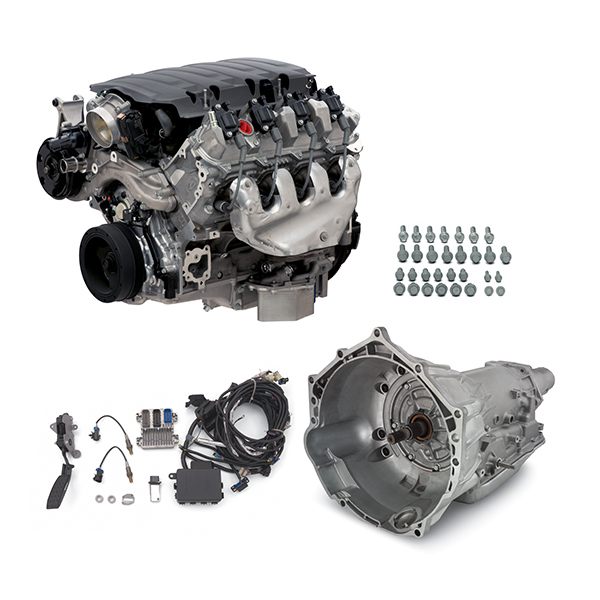

CPSLT14L70EW System Components:

  • 19418843 Engine with Wet Sump Oiling System
  • 19417228 Engine Control System
  • 19368614 Transmission
  • 19299802 Torque Converter
  • 19302405 Transmission Control System
  • 19329416 Transmission Installation Kit

The Next Generation is here and we have the complete performance package!

Introduced on the seventh-generation Corvette Stingray, the LT1 6.2L opened the next chapter in the long, historic legacy of the Small-Block engine ? and gives your project vehicle a high-tech heart transplant with an unprecedented balance of performance and efficiency! The LT1 crate engine is rated at 460 horsepower and 465 lb.-ft. of torque.

The LT1 is architecturally similar to the LS family of Small-Block engines, but with a unique block casting, cylinder head design, oiling system and more. It also combines advanced technologies including direct injection, Active Fuel Management (cylinder deactivation) and continuously variable valve timing to support an advanced combustion system.

The 4L70-E four-speed automatic overdrive transmission backs the LT1 with strength and durability. Put this combo to work in your classic cruiser and enjoy a great balance of performance and efficiency!

LT1 6.2L Wet Sump Connect & Cruise with 4L70-E Transmission

Click here to download installation information.

LT1 6.2L Wet Sump Connect & Cruise with 4L70-E Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
  2. Complete all information requested on this form and mail it by January 31st, 2024, OR
  3. Submit your rebate online at www.gmpartsrebates.com before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.
