Sale!

LT1 6.2L Wet Sump (460 hp) Connect & Cruise Powertrain System with T56 Manual Transmission

$18,959.73

  • LT1 6.2L (376 cu in) 460 hpEngine
  • T56 Super Magnum Six-Speed Manual Trans.
  • Wet Sump Oiling System
  • Calibrated Engine Control Module
REBATE AVAILABLE: $500/750 Prepaid VISA Gift Card From Chevrolet Performance. See 'Rebate' tab below for details.
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.

SKU: CPSLT1WET6LMAN Categories: , Tag:

LT1 6.2L Wet Sump Connect & Cruise with T56 Transmission

Engine Specs:

  • LT1 6.2L (376 cu in)
  • 460 hp @ 6,000 rpm
  • 465 lb.-ft. @ 4,600 rpm
  • 11.5:1 compression ratio
  • Direct Injection spark ignition
  • Internally balanced
  • Premium fuel recommended

Transmission Specs:

  • T56 Super Magnum six-speed manual
  • 26-spline input shaft, 31-spline output shaft
  • Slip-yoke design, 40-tooth reluctor ring for use with Chevrolet Performance controllers
  • New synchronizers featuring fine tooth angles
  • Bolstered one-piece countershaft to resist distortion
  • Re-designed shift forks
  • Gear ratios: 1st-2.66, 2nd-1.78, 3rd-1.30, 4th-1.00, 5th-0.80, 6th-0.63)
  • 33.6 inches long (approx)

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine, automatic or manual transmission, electronic controllers and al the necessary wire harnesses. Even better, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.

The Connect & Cruise lineup even includes several emissions-compliant E-ROD systems in both automatic and manual.

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, torque converter and controllers are ordered and delivered separately.

Installation Notes:

  • Engines shipped with high-pressure direct-injection fuel pump installed
  • Comes with LT1 Engine Control System, P/N 19303137 which includes the electronic throttle pedal that is required for throttle input to the ECU
  • Intended for pre-1976 street vehicles, or any off-road vehicle
  • Not intended for marine applications
  • Front-End Accessory Drive Kit, P/N 19329990, can be ordered separately
  • 8-bolt crankshaft flange
Weight 450 lbs
Brand

LT1 6.2L Wet Sump Connect & Cruise with T56 Transmission

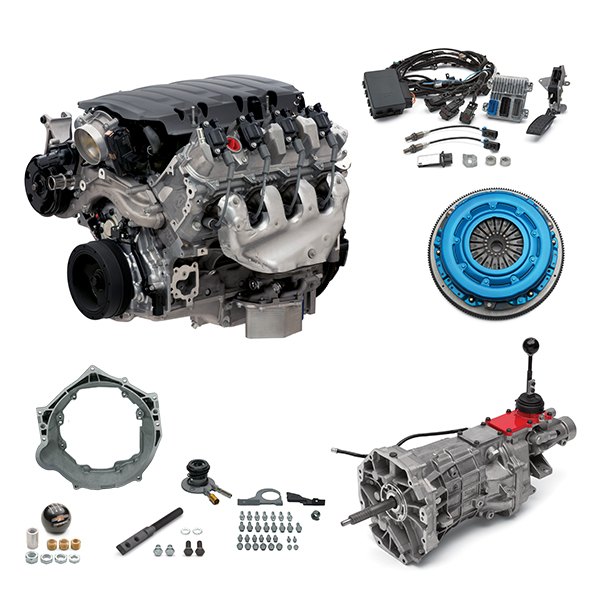

CPSLT1WET6LMAN System Components:

  • 19416592 Engine with Wet Sump Oiling System
  • 19417228 Engine Control System
  • 19352208 Transmission
  • 19329912 Transmission Installation Kit

The Next Generation is Here and we have the Complete Performance Package!

Introduced on the seventh-generation Corvette Stingray, the LT1 6.2L opened the next chapter in the long, historic legacy of the Small-Block engine ? and gives your project vehicle a high-tech heart transplant with an unprecedented balance of performance and efficiency! The LT1 crate engine is rated at 460 horsepower and 465 lb.-ft. of torque.

The LT1 is architecturally similar to the LS family of Small-Block engines, but with a unique block casting, cylinder head design, oiling system and more. It also combines advanced technologies including direct injection, Active Fuel Management (cylinder deactivation) and continuously variable valve timing to support an advanced combustion system.

It’s all backed by the T56 Super Magnum six-speed manual transmission for thrill of selecting your own gears and a double overdrive to make highway cruising a pleasure. These transmissions are rated to 700 lb.-ft. of torque and are brand new from the ground up. They use an extensively modified transmission case to prevent leaks under high-stress conditions and increase overall power-handling capabilities. The exterior case is similar in style to the T56 for a fourth-generation F-body with stronger, high-capacity gear sets, input shaft and output shaft used in the Tremec TR6060. Kit includes shifter handle and Chevrolet Performance-logo ball-type shift knob to complete your install.

LT1 6.2L Wet Sump Connect & Cruise with T56 Transmission

Click here to download installation information.

LT1 6.2L Wet Sump Connect & Cruise with T56 Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/750 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 11/1/2020 and 10/31/2021
  2. Complete all information requested on this form and mail it by November 30th, 2021, OR
  3. Submit your rebate online at www.gmpartsrebates.com before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.
