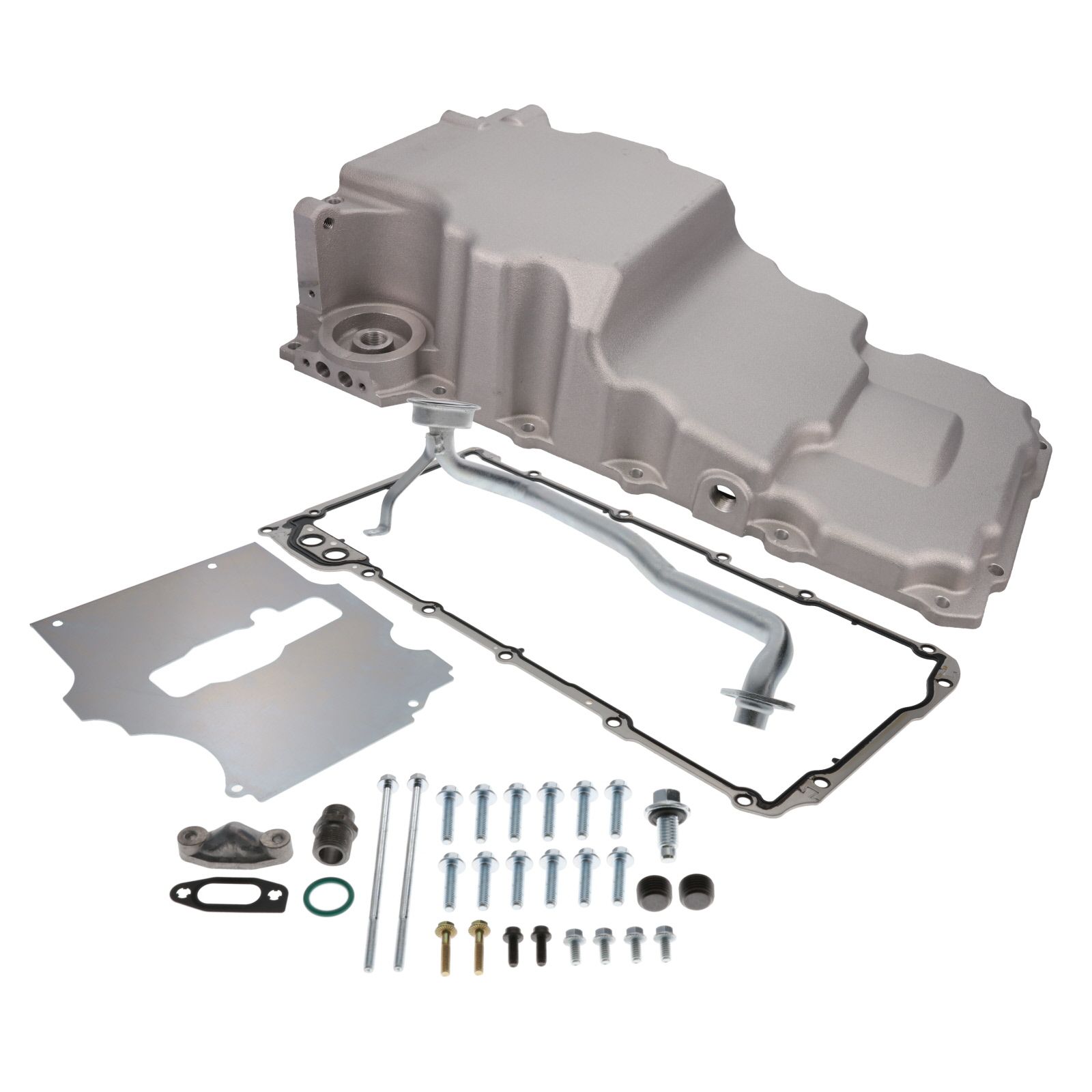

LS Retro-Fit Aluminum Rear Sump Oil Pan W/Added Clearance With Turbo Drains
$239.95 – $289.95
- Ideal for Ford Mustang (’79-’04), Ford Capri (’79-’86), Camaro/Firebird (’67-’69), Nova/Apollo/Ventura/Omega (’82-’92), GM A-body (’64-’72), G-body (’78-’87), and F-body (’82-’92) applications*
- Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
- Fits most LS engines, except LS7 or LS9 dry sump applications
- Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively
- Takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter
LS Retro Fit Oil Pan
LS swaps are popular amongst classic enthusiasts – they offer big power potential without the big price tag. This retro-fit aluminum oil pan is a great option for your LS swap build. It can be located in the same applications where the “F-Body” GM pan can be used. This oil pan uses OE style filters such as the AC Delco PF48/PF48E, K&N HP-1017 Wix 57060, or equivalent oil filter.
This high-quality oil pan is ideal for swaps in the following models:
- Camaro/Firebird (’67-’69)
- Nova/Apollo/Ventura/Omega (68-74)
- GM A-body (’64-’72)
- G-body (’78-’87)
- F-body (’82-’92)
Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application, and this pan will not fit dry sump engines (LS7, LS9). Also, this oil pan is designed for use with GM #12558253 windage tray, which may need to be altered to add clearance for the pick-up tube. This pan has 1/2″ NPT bungs on both sides for turbo drains and a maximum stroke of 4.00. It will also require the use of an LS3 style dipstick and tube:
- GM #12669528 and 12625031
- Holley 302-15 Dipstick/Tube Kit
- Karl Kustoms KPP81079BK or KPP81079C
If you need help finding the right oil pan for your LS swap project, Karl Kustoms can help. We offer a price match guarantee on all our products, and free shipping on orders over $99 to the lower 48. You can contact us here if you have questions, or read our reviews here to learn more about the services and products we offer.
| Weight | 16 lbs |
|---|---|
| Dimensions | 13 × 25 × 7 in |
| Brand | |
| Finish | Satin, Black, Polished |
