LS Swap Corvette C5 Fuel Filter Regulator w/ -6 AN Adapter Fittings LS1 5.3 6.0

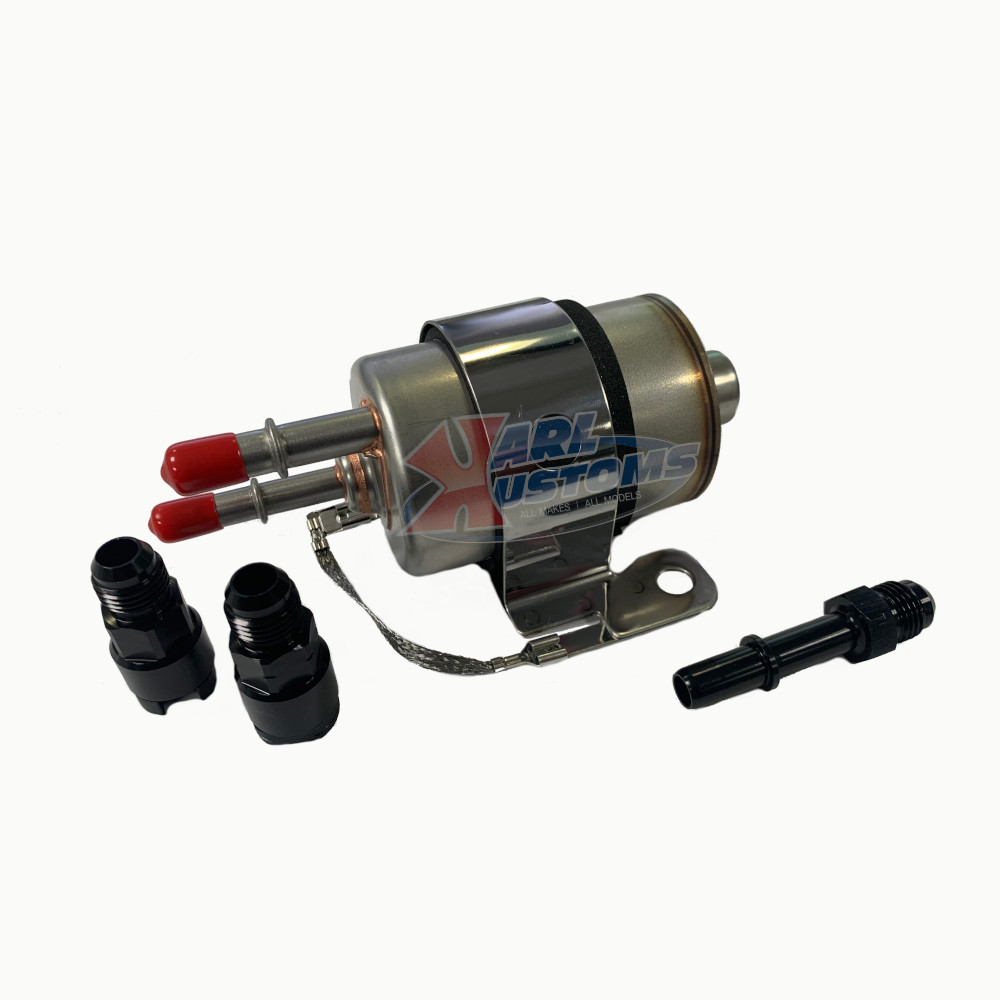

C5 Fuel Filter/Fuel Pressure Regulator assembly
-6AN Conversion Fitting for Oulet
-6AN Conversion Fitting for Inlet
-6AN Conversion Fitting for Return

SKU: KPP81095-KT Categories: ,

This filter/regulator assembly is commonly used when adapting return style fuel systems for use with returnless applications. Popular for simplifying the fuel system for LS swaps or standalone EFI systems such as Holley, FiTech, or FAST designed to operate on 58psi of static supply pressure. When mounted near the fuel tank this filter allows you to run a single fuel feed line to the engine and just a short return loop back to the tank.

This is the correct filter/regulator required for LS Swaps using returnless style fuel rails and also popular when doing popular the TBSS/NNBS Gen IV intake manifold swap. Using this filter/regulator between the returnless style fuel rails and your return style fuel lines allows for a plug and play style conversion for retrofitting TBSS/NNBS intake manifolds onto 99-04 return style NBS (Silverado/Sierra) truck and other applications.
This fuel filter features an internal bypass that regulates fuel output pressure to 58psi.

Note: The Filter/Regulator is capable of flowing a maximum of 255LPH. If using a larger fuel pump, you will need to use a more traditional return style regulator.

Weight .97 lbs
Dimensions 9 × 7 × 5 in
