Chevy Corvette Small/Big Block V8 Mechanical Tach Drive HEI Distributor SBC BBC

Original price was: $80.99.Current price is: $69.99.

  • Fits small block 262-400 and big block Mark IV 396-454
  • Includes mechanical tach drive

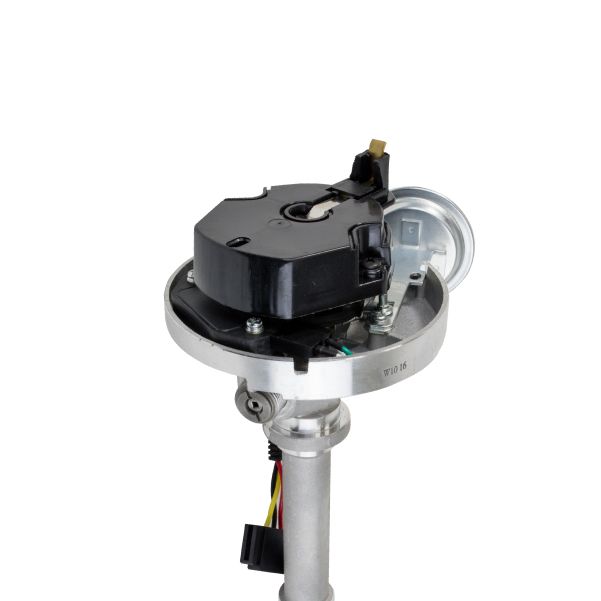

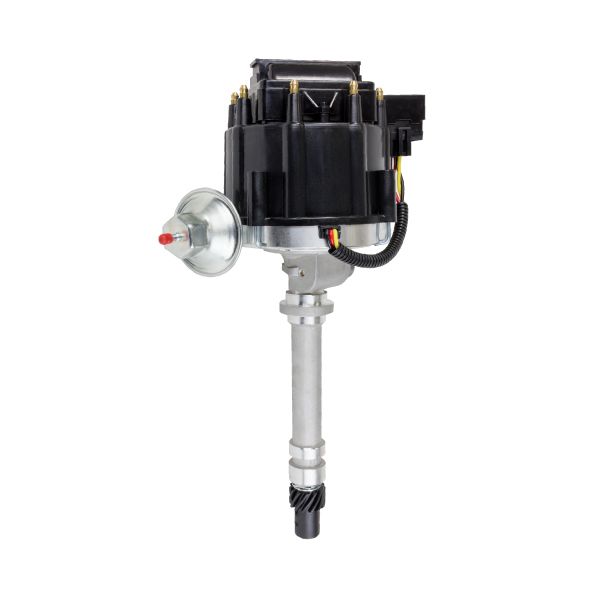

Chevy Big/Small Block Distributor

This distributor features a high-quality aluminum housing and dual hardened steel bushings, so it’s built to last. It’s a complete, ready-to-run all-new high-energy ignition (HEI) distributor. It features fully adjustable mechanical and vacuum advance for superior tunability. The high-output 7,500+ RPM ignition module, high-output 65,000 volt coil, solid brass terminals, and an easy one-wire hookup are all part of the package.

What’s Included

The distributor cap includes installation instructions and the vacuum advance adjustment tool, so you can ensure spark timing is exact.

Important Notes

  • This distributor will NOT fit tall deck blocks and will NOT fit if using a governor.
  • This is a Corvette-style mechanical tach drive. May not fit under OEM distributor covers/shields without modification.
  • The steel gear is compatible with most cast or billet cams, but always consult your camshaft manufacturer for recommended distributor gear material.

Karl Kustoms has the specialty parts you need when working on a custom build. We’ve got the experts and the inventory to help you get the job done. Check out this page if you’re looking for other distributor cap offerings from our team at Karl Kustoms. We’ve also got some distributor troubleshooting tips here. Contact us if you need help finding your parts today!

Weight 7 lbs
Dimensions 8 × 10 × 18 in
Brand

TRIGGER STYLE Magnetic
ADVANCE TYPE Mechanical and Vacuum
CAP STYLE Male
MECHANICAL TACH DRIVE Yes
SLIP COLLAR No
COIL INCLUDED Yes
COIL TYPE Internal
COIL OUTPUT 65,000 volts
GEAR MATERIAL Steel
HOUSING MATERIAL Machined Aluminum
IGNITION BOX REQUIRED No
MARINE USE No
CYLINDERS 8
INCLUDED Vacuum Advance Adjustment Tool
Installation Instructions

CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)

  • 6.5 L / 396 in3
  • 6.6 L / 402 in3
  • 7.4 L / 454 in3

CHEVROLET SMALL BLOCK V8 GEN. I

  • 4.3 L / 262 in3
  • 4.3 L / 265 in3
  • 4.4 L / 267 in3
  • 4.6 L / 283 in3
  • 4.9 L / 302 in3
  • 5.0 L / 305 in3
  • 5.0 L / 307 in3
  • 5.4 L / 327 in3
  • 5.7 L / 350 in3
  • 6.6 L / 400 in3
