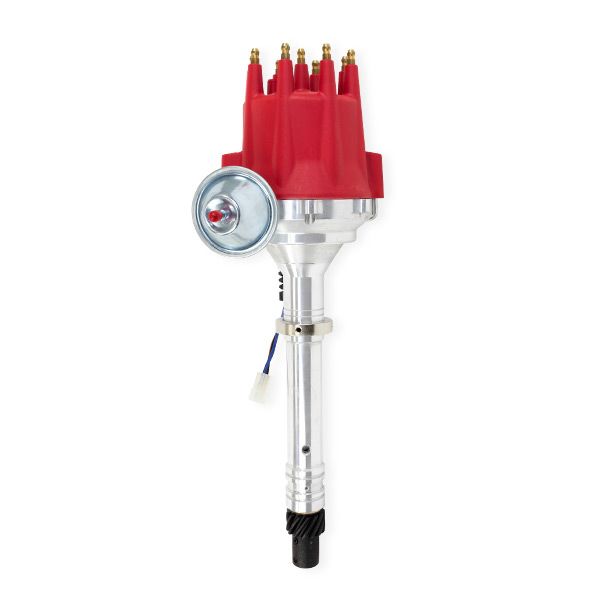

Chevy Small/Big Block Vac Adv Pro Billet Distributor SBC BBC 350 383
$129.99
- Fits small block 262-400 and big block Mark IV 396-454
- Fully adjustable mechanical advance with additional springs and bushings included
- Vacuum advance
- Will not fit tall deck blocks
- Will not fit using a governor
Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The dielectric cap features bolt-down and twist-lock capabilities. It has solid brass terminals and comes with a color-matched wire retainer. Requires the use of an ignition box.
Weight | 6 lbs |
---|---|
Dimensions | 7 × 8 × 18 in |
Brand | |
Color | Black Cap, Red Cap |
TRIGGER STYLE | Magnetic |
ADVANCE TYPE | Mechanical & Vacuum |
CAP STYLE | Male |
MECHANICAL TACH DRIVE | No |
SLIP COLLAR | Yes |
COIL INCLUDED | No |
COIL TYPE | External |
COIL OUTPUT | 35,000+ Volt Recommended |
GEAR MATERIAL | Steel |
HOUSING MATERIAL | Machined Aluminum |
IGNITION BOX REQUIRED | Yes |
MARINE USE | No |
CYLINDERS | 8 |
INCLUDED | 3 Bushings and 4 Springs for Mechanical Advance, Color-Matched Spark Plug Wire Retainer with Screws |
CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
- 6.5 L / 396 in3
- 6.6 L / 402 in3
- 7.4 L / 454 in3
CHEVROLET SMALL BLOCK V8 GEN. I
- 4.3 L / 262 in3
- 4.3 L / 265 in3
- 4.4 L / 267 in3
- 4.6 L / 283 in3
- 4.9 L / 302 in3
- 5.0 L / 305 in3
- 5.0 L / 307 in3
- 5.4 L / 327 in3
- 5.7 L / 350 in3
- 6.6 L / 400 in3
