Karl Performance Parts GM LS Cast Aluminum Valve Covers


  • Fits GM LS-based small block engines
  • Mounts Gen 5 LS coils (Delco D510C)
SKU: KPPJM8082 Categories: ,

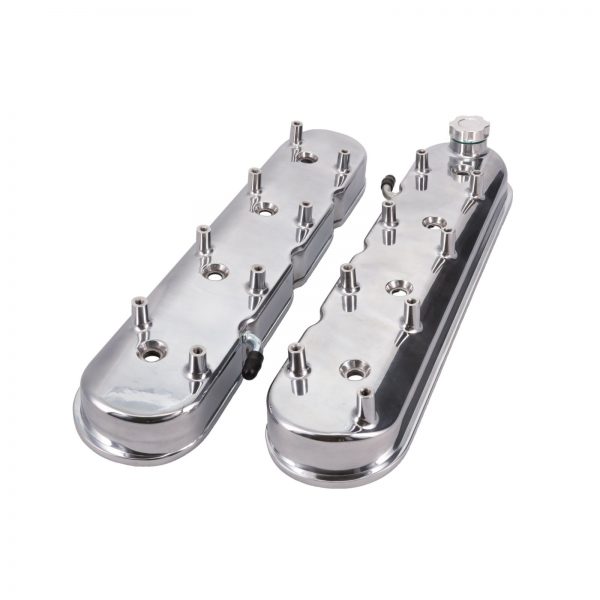

Cast Aluminum Valve Covers

These cast aluminum valve covers are a great way to dress up your LS engine. They are bolt-on replacements for your stock valve covers and do not require any changes to your engine. These covers have an increased height to allow for added valve train clearance and feature a baffled stock-style ventilation set-up and a finished oil fill cap. The mounting bosses fit LS coils with 72 mm spacing and will work with Delco 510C 05-up coils found on the LS2, LS3, LS7 and similar applications.

What’s Included

Includes two valve covers with the following hardware:

  • Valve Cover Bolts
  • Matching Oil Fill Cap
  • Valve Cover Gaskets

Karl Kustoms has a huge inventory of engine dress up components. You can check out this article to learn about some of our favorite valve covers. Call or contact us today if you have any questions about getting the right valve covers for your engine.

Weight 8 lbs
Dimensions 11 × 21 × 5 in


Satin, Black, Polished

Technical Specs

  • Mounting Style: Center Bolt
  • Internal Height: 1.60 inches
  • Overall Height: 3 inches
  • Baffled: yes
  • Cover Material: Cast Aluminum
  • Gasket Style: One-piece O-ring (included)
  • Weight: 8 lbs
  • Dimensions: 11 × 21 × 5 in
  • Brand: Karl Performance Parts
  • Finish: Satin, Black, Polished

Chevrolet Small Block V8 Gen. III/IV (LS Based)

  • 4.8 L / 293 in3
  • 5.3 L / 325 in3
  • 5.7 L / 346 in3 commonly referred to as 350
  • 6.0 L / 364 in3
  • 6.2 L / 376 in3
  • 7.0 L / 427 in3
