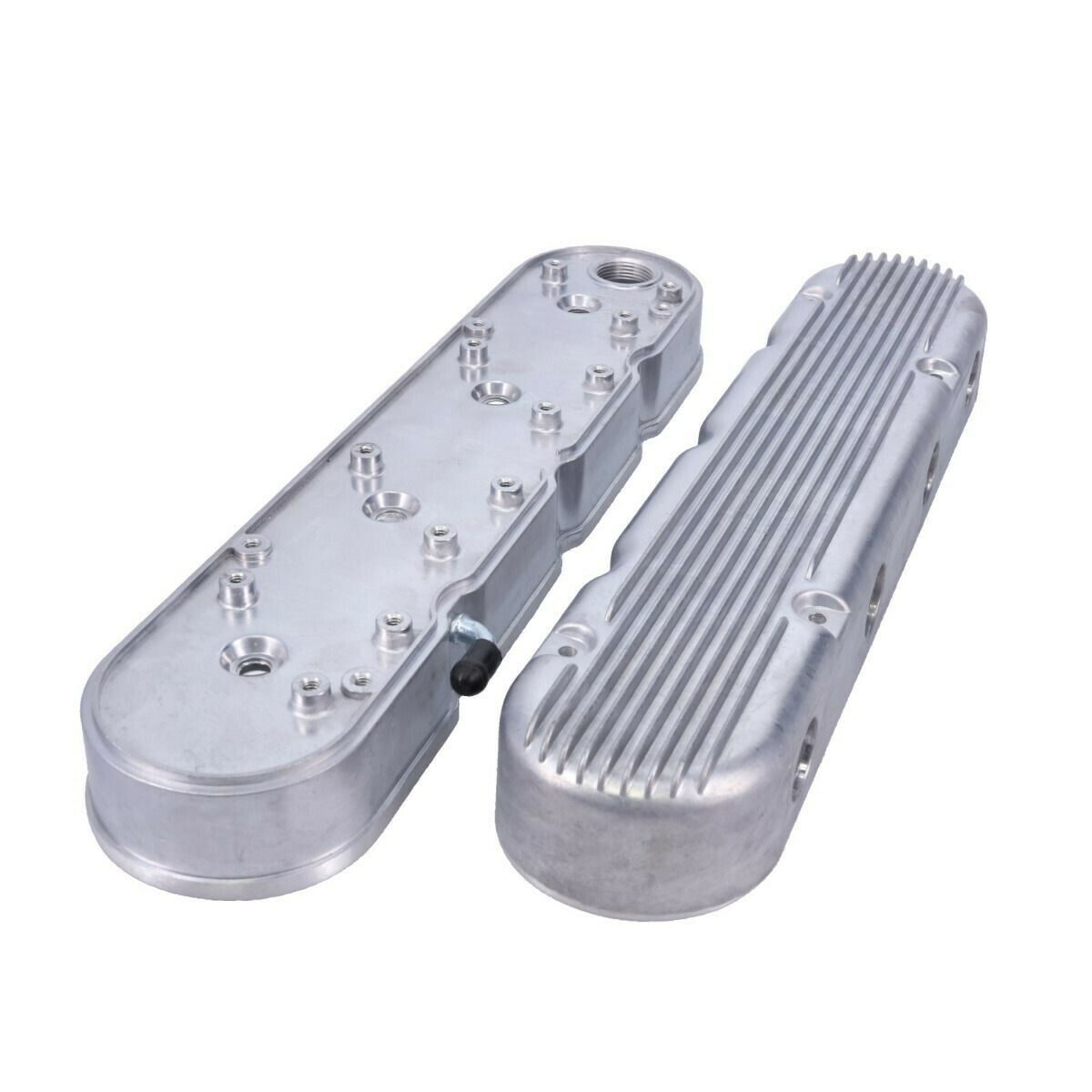

GM LS V8 Finned Aluminum 2-Piece Valve Covers with Coil Mounts and Covers
$249.99 – $309.99
- Fits GM LS-based small block engines
- Mounts Gen 5 LS coils (Delco D510C)
- Valve cover mounts to LS1, LS2, LS3, LS6, and LS7 engines
- Has mounts for Delco 510C (TSP 81015) style ignition coils (72mm spacing)
Add a classic look to your LS powered vehicle with these finned aluminum 2-piece valve covers. These hide the coils under a cool, retro cover. Cutouts in the top cover allow easy routing of wiring as well as routing for the plug wires themselves. These covers allow you to mount two of the most popular coil styles. No extra coil brackets are required. With a taller than stock internal height, these will clear most aftermarket valvetrain setups. Overall height is 4.5 inches from gasket surface to the top.
Accepts Both Delco D580 and Delco D510C LS ignition coils.
Weight | 9 lbs |
---|---|
Dimensions | 11 × 21 × 5 in |
Brand | |
Finish | Satin, Black, Polished |
MOUNTING STYLE | Center Bolt |
INTERNAL HEIGHT | 1.60″ |
OVERALL HEIGHT | 4.56″ |
BAFFLED | Yes |
COVER MATERIAL | Cast Aluminum |
GASKET STYLE | Included One-piece O-ring |
VALVE COVER HARDWARE | Included |
QUANTITY | 2 |
INCLUDED | Valve Cover Bolts Matching Oil Fill Cap Valve Cover Gaskets |
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
- 4.8 L / 293 in3
- 5.3 L / 325 in3
- 5.7 L / 346 in3 commonly referred to as 350
- 6.0 L / 364 in3
- 6.2 L / 376 in3
- 7.0 L / 427 in3
