Sale!

LT4 SC 6.2L Wet Sump Connect & Cruise Powertrain with 8L90-E Automatic Transmission

$24,007.60

  • LT4  SC 6.2L (376 cu in) 650 hp Engine
  • 8L90-E Eight-Speed Automatic Transmission
  • Engine and Transmission Control Modules
REBATE AVAILABLE: $500/750 Prepaid VISA Gift Card From Chevrolet Performance. See 'Rebate' tab below for details.
Due to world events we are working with our manufacturers every day to ship and receive parts. If the part you are looking for is time sensitive please give our team a call at 855-806-1147 before ordering to ensure it's availability.

SKU: CPSLT4W8L90E Categories: , , Tag:

LT4 SC 6.2L Wet Sump Connect & Cruise with 8L90-E Automatic Transmission

Engine Specs:

  • LT4 SC 6.2L (376 cu in)
  • 650 hp @ 6,400 rpm
  • 650 lb.-ft. @ 3,600 rpm
  • 10.1:1 compression ratio
  • 1.7L Eaton R1740 TVS supercharger

Transmission Specs:

  • 8L90-E eight-speed automatic
  • Four gearsets
  • Five clutches – 2 brake clutches & 3 rotating clutches
  • 4.56 first gear ratio, 0.70 overall ratio

More about Connect & Cruise Crate Powertrain Systems

The Complete Performance Package!

When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine, automatic or manual transmission, electronic controllers and al the necessary wire harnesses. Even better, we deliver it for less than the cost of buying the components separately.

Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.

The Connect & Cruise lineup even includes several emissions-compliant E-ROD systems in both automatic and manual.

We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.

Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!

NOTE: All components, engine, transmission, torque converter and controllers are ordered and delivered separately.

Connect & Cruise Builders Guide

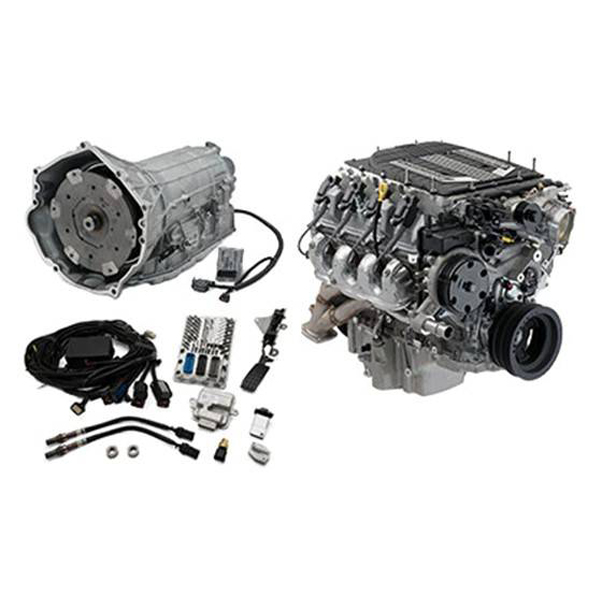

Each Chevrolet Performance Connect & Cruise crate powertrain system includes:

  • Brand-new, fully assembled crate engine
  • Brand-new automatic or manual transmission
  • SuperMatic™ transmission control module and harness
  • Calibrated engine control module
  • Two oxygen sensors and mounting bosses (for installation in the exhaust system)
  • Mass airflow meter and mounting boss (for installation in the air intake system)
  • Throttle pedal assembly (for use with the electronically operated throttle)
  • Assembled wiring harness w/ fuse box and necessary cam and MAP sensor jumpers
  • Oil pressure sensor that is compatible with the harness
  • Instruction sheet

To facilitate a complete installation, the builder will need to source additional components to complete the engine assembly and get the vehicle running, including:

  • Fuel tank and fuel lines (re-circulating or returnless)
  • Fuel pump – 58 psi (400 kPa) for all engines except LSA, which requires 65 psi (450 kPa)
  • Air induction system that incorporates the mass airflow sensor

Additionally, all engines require a front-end accessory drive system. The instructions included with each kit lists recommendations and Chevrolet Performance offers several configurations to suit different applications. Each allows the installer to easily delete air conditioning.

Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on installing an LS engine into older vehicles.

Brand

LT4 SC 6.2L Wet Sump Connect & Cruise Powertrain with 8L90-E Automatic Transmission

CPSLT4W8L90E System Components:

  • 19418844 Engine
  • 19419242 Engine Controller
  • 19419799 Transmission
  • 19417103 Transmission Installation Kit

Note: Transmission controller and torque converter included with the transmission.

Supercharged Power from the C7 Corvette Z06!

As the heart of the Corvette Z06, the supercharged LT4 6.2L SC is the most powerful engine ever offered in a regular-production Chevrolet.  It features a more-efficient, more-compact 1.7L Eaton R1740 TVS Supercharger, which spins at up to 20,000 rpm.  That’s enough to generate more than 9 pounds of boost and help produce 650 horsepower and 650 lb.-ft. of torque.

The LT4 is based on the same Gen V Small-Block architecture as the LT1 engine, with several unique features designed to support its higher output and the greater cylinder pressures created by force induction.  They include Rotocast A356T6 aluminum cylinder heads, which are stronger and handle heat better than conventional castings, lightweight titanium intake valves and stronger forged aluminum pistons.



LT4 SC Wet Sump Connect & Cruise with 8L90-E Transmission

Chevrolet Performance recommends the LS1 Engine Installation Guide P/N 88959384, which illustrates basic procedures and offers helpful tips on installing an LS engine into older vehicles.

LT4 SC Wet Sump Connect & Cruise with 8L90-E Transmission

Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.

Click here for more detailed warranty information.

This product qualifies for a $500/750 Rebate from Chevrolet Performance.

To receive the rebate:

  1. Purchase a select Chevrolet Performance Connect & Cruise System between 11/1/2020 and 10/31/2021
  2. Complete all information requested on this form and mail it by November 30th, 2021, OR
  3. Submit your rebate online at www.gmpartsrebates.com before the same deadline

See rebate form for more details.

NOTE: Please allow up to 6-8 weeks for rebate processing.
