SP383 EFI Deluxe Connect & Cruise Crate Powertrain System with T56 Manual Transmission
$19,789.36
- 450hp @ 5,800 rpm / 436 lb.-ft. @ 4,800 rpm
- Forged Steel Crank in a Four-bolt Main Block
- Lightweight Fast Burn Aluminum Heads
- T56 Super Magnum Six-Speed Manual Transmission
SP383 EFI Deluxe Connect & Cruise with T56 Manual Transmission
Engine Specs:
- Engine: SP383 Deluxe (383 cu in)
- 450 hp @ 5,800 rpm
- 436 lb.-ft. @ 4,800 rpm
- 9.72:1 compression ratio
Transmission Specs:
- T56 Super Magnum six-speed manual
- 26-spline input shaft, 31-spline output shaft
- Slip-yoke design, 40-tooth reluctor ring for use with Chevrolet Performance controllers
- New synchronizers featuring fine tooth angles
- Bolstered one-piece countershaft to resist distortion
- Re-designed shift forks
- Gear ratios: 1st-2.66, 2nd-1.78, 3rd-1.30, 4th-1.00, 5th-0.80, 6th-0.63)
- 33.6 inches long (approx)
Installation Notes:
- Designed for pre-1976 street vehicles or any off-highway vehicle
- Not intended for marine applications
More about Connect & Cruise Crate Powertrain Systems
The Complete Performance Package!
When it comes to factory-engineered performance and convenience, nothing beats Chevrolet Performance’s industry-exclusive Connect & Cruise powertain systems. With one package you get the engine and automatic or manual transmission and, we deliver it for less than the cost of buying the components separately.
Our engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower with total confidence! The specially calibrated controllers for fuel-injected engines are designed for retrofit installations in older vehicles, for easier and quicker installation – and more importantly – operation without the need for third-party tuning.
We did the work to design and calibrate perfectly matched powertrain systems and covered them with a 24-month / 50,000-mile limited warranty.
Chevrolet Performance pioneered the performance crate engine, so when it comes to performance innovations that save time, money and guesswork, we once again lead the way! All you have to do is install, connect, and start cruising!
NOTE: All components, engine, transmission, controllers and installation kits (where applicable) are ordered and delivered separately.
SP383 EFI Deluxe Connect & Cruise with T56 Manual Transmission

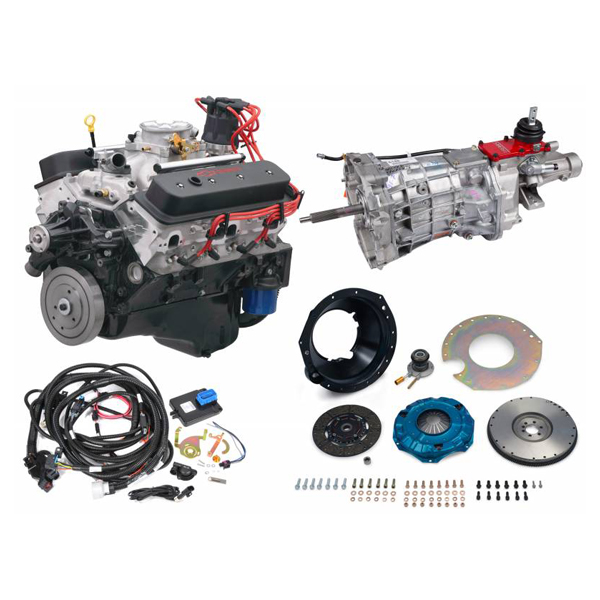

CPSSP383EFIT56 System Components:
- 19418640 Engine
- 19352208 Transmission
- 19329900 Transmission Installation Kit
Big Torque and EFI Convenience in a Compehensive Kit
It’s hard to beat the classic 383 “stroker” for Small-Block torque, but Chevy Performance engineers found a way. They matched it with the driving convenience of electronic fuel injection!
Rated at 450 horsepower and 436 lb.-ft. of torque, the SP383 EFI also features a high-performance roller camshaft and lightweight aluminum, Fast Burn-style cylinder heads with modern valvetrain technology that includes beehive-type valve springs and aluminum roller rocker arms.
The SP383 EFI incorporates a port-style injection system, with the injectors plumbed in a carburetor-style intake manifold, and the throttle body mounted in the conventional position of the carburetor, which allows for a traditional air cleaner and a classic appearance. It’s a vintage look that offers contemporary drivability and strong performance.
SP383 EFI Deluxe Connect & Cruise with T56 Manual Transmission
SP383 EFI Deluxe Connect & Cruise with T56 Manual Transmission
Chevrolet Performance Connect & Cruise Powertrain Systems include a 24-month or 50,000-mile (80,000 kilometer) limited warranty on all components.
This product qualifies for a $500/$750/$1,000 Rebate from Chevrolet Performance.
To receive the rebate:
- Purchase a select Chevrolet Performance Connect & Cruise System between 1/1/2023 and 12/31/2023
- Complete all information requested on this form and mail it by January 31st, 2024, OR
- Submit your rebate online at www.gmpartsrebates.com before the same deadline
See rebate form for more details.
NOTE: Please allow up to 6-8 weeks for rebate processing.
