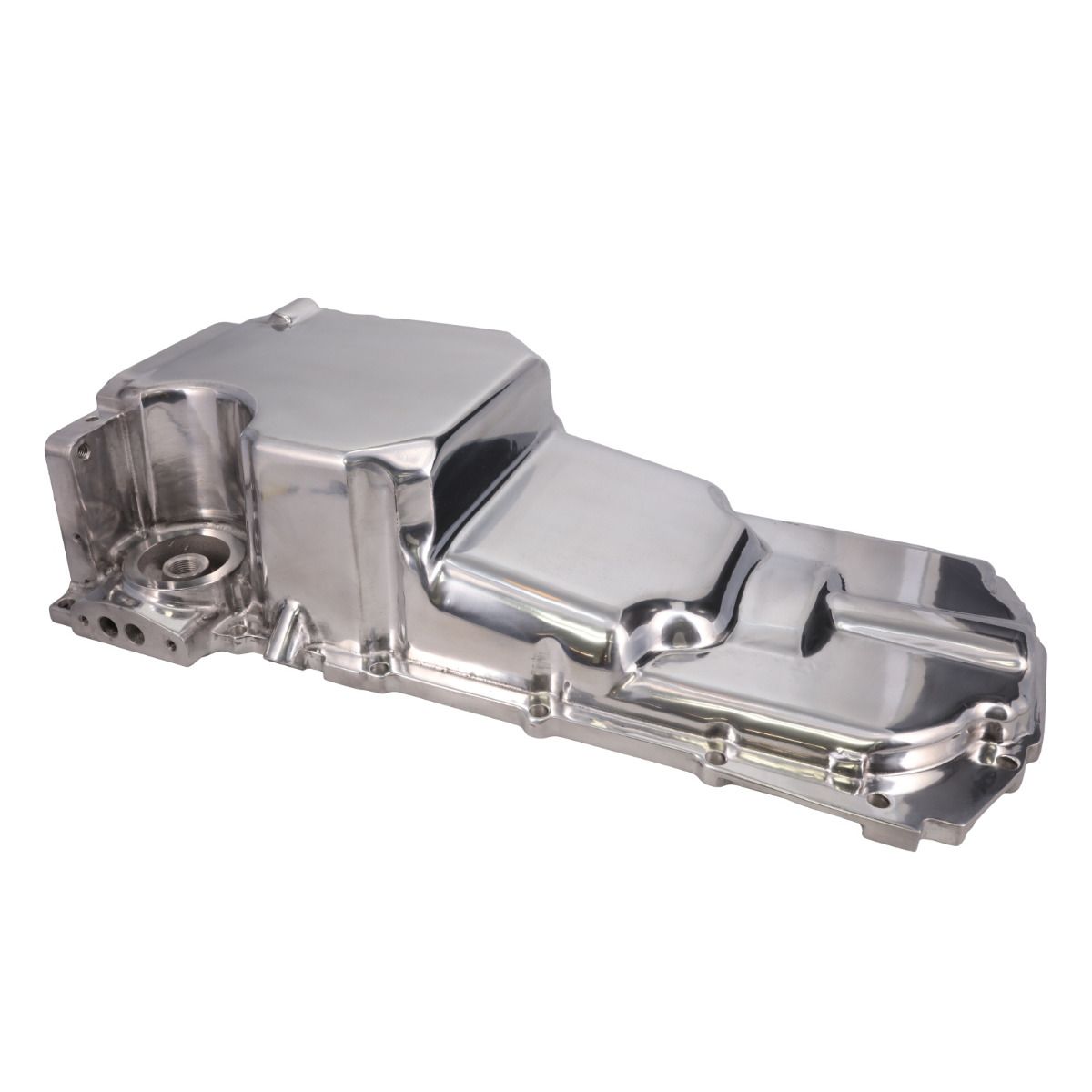

LT Retro Fit Oil Pan With Frame Cut Outs
$294.99 – $329.99
- Ideal for Camaro/Firebird (’67-’92), Nova/Apollo/Ventura/Omega (’68-’74), GM A-body (’64-’72), G-body (’78-’87), and GM Full-size trucks (’73-’87) applications*
- Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
- Requires the use of LT style dipstick and tube: GM #12661062 and 12678823, respectively
- Pan does not have boss for temperature sensor
LT Retro Fit Oil Pan
LT engines are becoming more and more popular for swaps. Unfortunately, stock LT oil pans can’t always fit where you want them to. That’s where this low-profile, retro fit oil pan comes in. Take a look at this post to understand more about oil pan options for engine swaps.
This oil pan is ideal for use in the following makes/models:
- ’67-’92 Camaro/Firebird
- ’68-’74 Nova/Apollo/Ventura/Omega
- ’64-’72 GM A-body
- ’78-’87 GM G-body
- ’73-’87 GM Full-size trucks
Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to an LT engine and take the stock oil filter.
If your oil pan has visible damage, or if you just need a new oil pan for your swap project, this high-quality oil pan with frame cut-outs from Karl Kustoms is a great option. (Check out our complete oil pan offerings here.) Don’t settle for a damaged, dented or sunken in pan. Impact damage can cause a fast leak or lead to a drip that steadily gets worse as the oil moves through the oil passage. Replace your LT engine oil pan today.
| Weight | 16 lbs |
|---|---|
| Dimensions | 13 × 25 × 7 in |
| Brand | |
| Finish | Satin, Black, Polished |
| SUMP STYLE | Wet |
| SUMP LOCATION | Rear |
| SUMP DEPTH | 5.56″ |
| MAXIMUM STROKE | 4.00″ |
| OIL FILTER LOCATION | Stock |
| SUMP OIL CAPACITY | 5.6 Quarts |
| TOTAL OIL CAPACITY | 6.1 Quarts with Stock Filter |
| BAFFLED | Yes |
| WINDAGE TRAY | Included |
| OIL PICK-UP | Included |
| GASKET | Included |
| INCLUDED | Sump Baffle Oil Pickup Tube Drain Plug Oil Filter Stud Oil Passage Cover Oil Return Plugs Mounting Hardware |
Fitment
CHEVROLET SMALL BLOCK V8 GEN. V (LT BASED)
- 6.2 L / 376 in3
